Bioenno Tech LLC / Bioenno Power BLF-1260L

Bioenno Tech LLC / Bioenno Power BLF-1260L

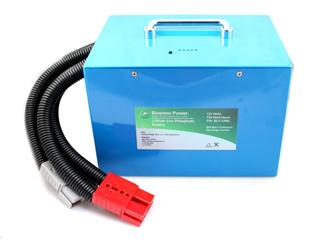

Bioenno Power 12 Volt 60 Ah LiFePO4 Battery - Aluminum Case

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $569.99*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
BLF-1260L Description     Hide

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1260L is a 12 Volt/60 Ah battery based on state-of-the-art Lithium Iron Phosphate electrodes. Designed for field use and particularly suited for Ham Radio Field Day applications, this battery features a ruggedized one piece aluminum tub and includes on the aluminum lid a ruggedized carry handle and a capacity display. Additionally featuring SB120 Anderson Power Pole discharge/charge connectors, this unit is ready to go out of the box and with both connectors wired to the same point on the PCM you can discharge and charge through either connector. The battery includes a PCM (protection circuit module) and has an available optional 120 VAC/240 VAC AC-to-DC charger that provides 10A through a matching Anderson Power Pole Connector. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.



BLF-1260L User Manual [PDF]



BLF-1260L (Aluminum Case) Battery Specifications
Voltage: 12V
Capacity: 60Ah
*Charge Connector:  Anderson SB120  Powerpole Connector
*Discharge Connector:  Anderson SB120  Powerpole Connector
Maximum Continuous Discharge Current:  60A
Max Power Delivered to Load at 12V:  720 Watts (12V x 60A = 720 Watts)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Includes 110 VAC AC-to-DC Charger
Dimensions: 9.5 in. x 7.13 in. x 6.94 in. (240 mm x 180 mm x 176 mm)
Weight: 20 lbs.  (9.1 kg.)
Battery comes with factory fitment-tested SB120 Connector Kit Accessory Pack

*Battery has: 1x Red Anderson SB120 Powerpole, 1x Grey Anderson SB120 Powerpole. These connectors ARE NOT interchangeable due to the product's design. A red connector will not plug into a grey connector!

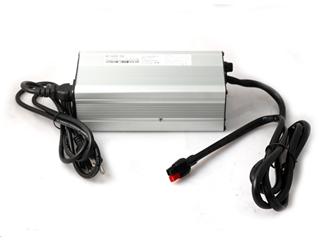

AC-to-DC Charger Specifications
Input Voltage:  110VAC
Output Voltage: 14.6VDC
Current: 10A
Connector: SB120 Powerpole Connector

    Manufacturer's Website
