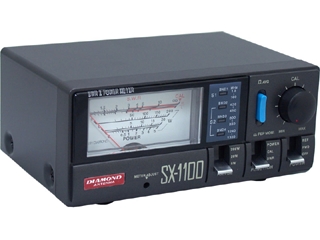

The SX1100 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.
• Illuminated meter
• Switchable r.m.s. or peak power
• Measures forward, reflected & VSWR power
• 6"W x 2"H x 4"D, 2 lbs.
Frequency MHz: 1.8-160, 430-450
Connectors: HF-VHF: SO-239
Remarks: 12VDC @ 50mA is required for illuminated display.
