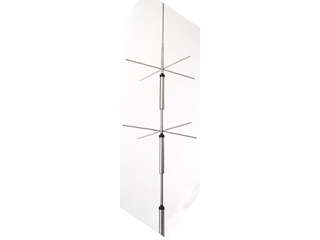

The CP6AR multi-band trap-vertical antenna for
HF bands, covering the 75*, 40*, 20, 15, 10 and 6m amateur bands.
Made from heavy duty aluminum, the CP6AR assembles easily, and yields
excellent performance and reliability from a compact base station
antenna. Its compact size allows for many mounting options.
Minimum 15' diameter required for mounting radials. No additional
ground radials required. |
Special Features:
• Compact size
• Heavy-duty aluminum antenna sections
• Easy assembly
• No additional ground radials required
• Mounting hardware included
Specifications:
Frequency: 75 - 40 - 20 - 15 - 10 - 6m
Power: 200 Watts PEP
Impedance (output): 50 Ohms
VSWR: 1.8:1 (Nominal)
Element Phasing: 1/4 wave trap vertical groundplane

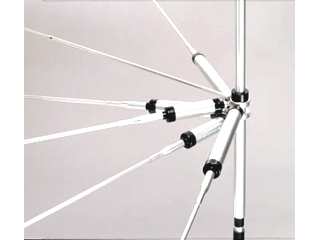

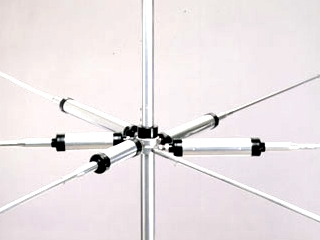

Radials: Six, Trap design
Grounding: Direct grounding. Antenna element and radials connected to mounting pipe
Max Wind Rating: 80 mph (no ice)
Mast Diameter Acceptance: 1.2" - 2.4"
Overall Length: 15.1' (4.6 m)
Weight: 9.9 lbs. (4.9 kg)
Connector: SO239 female UHF
