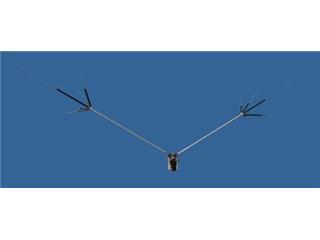

5-Band, 1/2 wave rotatable dipole for 40/20/15/10/6 meters!
Compact, lightweight, and easily assembled in either a horizontal, "V" shape or ground-plane configuration. Each band tunes independently of the
Comet engineers have specifically designed this antenna for those that desire a milti-band dipole that can be rotated if needed, but don't have a lot of
room to install it.
If you have antenna restrictions, neighbors that tend to complain about antennas, simply want to operate without drawing attention...or you want a lightweight
multi-band antenna to use in portable or emergency situations, the CHV-5X is a great choice.
Max power: 40/20M 150W SSB
15/10/6M 220W SSB
Horizontal length: 13 ft approx
Weight: 5 lbs 14 oz approx
Impedance: 50 Ohm
Mounting mast req'd: 1"-2.5"
Typical 1.5:1 or less SWR bandwidth:
