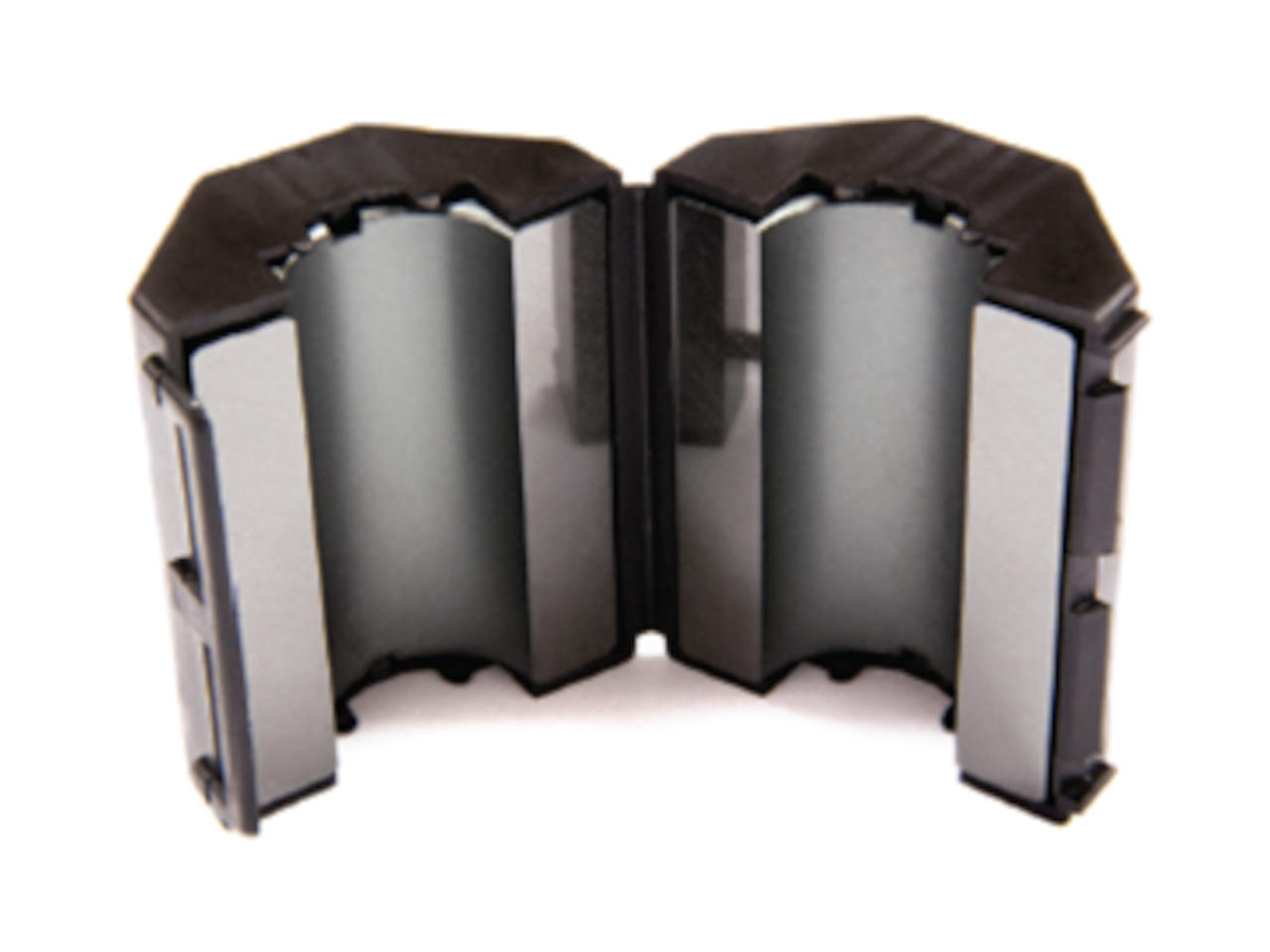

Palomar Engineers FSB31-1-3

Palomar Engineers FSB31-1-3

ID=1", RFI Range 1-300 MHz, Bulk Pack of 3

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $57.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
FSB31-1-3 Description     Hide

Product Details:

  • MPN: FSB31-1
  • Initial Permeability (@ 10KHz): 1500
  • Material: MnZn
  • Max cable size - in/mm: 1.0/25.4
  • OD (A) - in/mm: 2.22/56.4
  • ID (B) - in/mm: 1.02/25.9
  • Length (C) - in/mm: 1.69/41.9
  • Z (ohms per bead - single turn 1 MHz): 45
  • Z (ohms per bead - single turn 5 MHz): 90
  • Z (ohms per bead - single turn 10 MHz): 125
  • Z (ohms per bead - single turn 25 MHz): 218
  • Z (ohms per bead - single turn 100 MHz): 375
  • Z ohms (per bead - single turn 250 MHz): 340

Also known as Big Clamp On. Very useful for AC/DC power, coax cable, etc. Use multiple turns for best results or multiple chokes in series (recommended for large amperage power cables). Always put +/- dc cables through the same ferrite filter so their fields cancel and the ferrite suppresses the common mode current on each cable.

  • Bulk pack of 3
