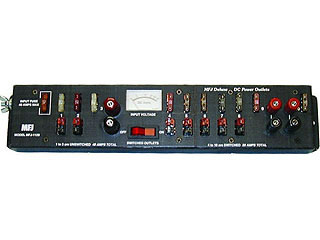

Get the best of both connectors! 10 outlets. Installed fuses: two 1A, three 5A, three 10A, one 25A, one 40A. Outlets 1, 2, 4-8 are Anderson PowerPoleÃ‚Â®. Outlet 3 is a 35A high current binding post; outlet 9, 10 are 15A binding posts. Built-in 0-25 VDC Voltmeter. ON/OFF switch for outlets 4-10, 20 amps total. Outlets 1, 2, 3 unswitched, handle 40 amps total. Includes 7 pairs of PowerPoleÃ‚Â® 14 40A contacts, 10 fuses (2 ea, 1,5,10,25,40). 121/2Wx11/4Hx23/4D in.
Each Anderson PowerPoleÃ‚Â® outlet can carry up to 40 amps. You can fuse each outlet as needed to protect your accessories or transceiver. The main fuse is 40 amps.
The standard color coded fuses simply plug in from outside. They are widely available ATC/ATO automobile fuses and can be used for 6, 12, 24 VDC systems.
