Powerwerx DB-750X

Click below to view additional product images.
Powerwerx
DB-750X
Dual-band Commercial XCVR

HRO Discount Price: $299.95

This item is also available at these Ham Radio Outlet locations:
In Stock Anaheim, CA In Stock Sunnyvale, CA In Stock Oakland, CA In Stock San Diego, CA In Stock Burbank, CA In Stock Phoenix, AZ
In Stock Woodbridge, VA In Stock Atlanta, GA In Stock Salem, NH In Stock Denver, CO In Stock Portland, OR In Stock New Castle, DE


Detailed Product Description

(Note you must purchase the USB programming cable in order to unlock this radio as it is Part 90 commercial - RPS-DB750X-USB)

Description

All of the features you want at an affordable price. The newest mobile added to the Powerwerx lineup features Narrow band transmit (2.5 KHz) except on the Amateur bands (selectable Wide or Narrow RX), true dual-band receive (V+V, U+U, V+U, U+V), Wide RX/TX 136-174/400-490 MHz, AM aircraft Receive 108-136 MHz and user selectable multi-colored LCD display. Since this is a Commercial Land Mobile Multi-band radio, the DB-750X ships keyboard locked. The RPS-DB750X-USB programming software kit is required to initially unlock and program this radio before use.

Ideal for Fire, Police, FEMA, CAP, security patrols, business communications, schools, construction crews, universities, and other organizations that have FCC licensed frequencies. Includes 2.5 KHz channel step for FCC 2013 narrowband compliance.

DB-750X Model Features

  • 2.5 step for FCC 2013 narrowband compliance New!
  • 750 memory channels
  • 10 Memory Banks (with bank linking)
  • 7 Character Alpha-Numeric Display
  • Dual Receive Operation w/ separate Volume Controls
  • Narrow band (2.5 KHz) operation for Land Mobile frequencies (FCC Part 90)
  • Wide band (5.0 KHz) operation for Amateur frequencies
  • Optional Base Station Configuration

FCC Approval

The DB-750X is Part 90 certified for commercial use. CE & FCC Part 90 certified.

Powerwerx Warranty Policy

  • 12 month limited warranty on the radio against defects in materials and workmanship

Standard Accessories Included with Every Radio

  • Dual band transceiver w/ removable control head
  • DTMF Microphone
  • DC Power Cable
  • Mobile Mounting Bracket (w/ mounting screws)
  • English user manual

Features

  • True Dual band Receive (VHF+UHF, VHF+VHF, UHF+UHF)
  • 7 Character Dual alpha numeric, backlit display
  • 4 Selectable high/low power settings per band
  • (VHF: 50/20/10/5W) (UHF: 40/25/10/5W)
  • Single or Dual Receive/Display Modes
  • User selectable multi-colored LCD display
  • 750 Memory Channels w/ 10 Banks
  • True Dual band Receive (VHF+UHF, VHF+VHF, UHF+UHF)
  • 7 Character Dual alpha numeric, backlit display
  • 4 Selectable high/low power settings per band
  • (VHF: 50/20/10/5W) (UHF: 40/25/10/5W)
  • Single or Dual Receive/Display Modes
  • User selectable multi-colored LCD display
  • 750 Memory Channels w/ 10 Banks

Specifications

DB-750X

Frequency Receive Range

VHF: 108-136 MHz (AM)
VHF: 136-174 MHz (FM Wide and Narrow)
VHF: 220-260 MHz (FM Wide and Narrow)
UHF: 360-490 MHz (FM Wide and Narrow)

Frequency Transmit Range

VHF: 136-143.995 MHz (FM Narrow)
VHF: 144-147.995 (FM Wide)
VHF: 148-174 MHz (FM Narrow)
UHF: 400-429.995 MHz (FM Narrow)
UHF: 430-449.995 MHz (FM Wide)
UHF: 450-469.995 MHz (FM Narrow)
UHF: 470-490 MHz (FM Wide)

Memory Channels

750 channels

Operating Voltage

13.8 VDC

Operating Temperature

-22°F to 140°F (-30°C to +60°C)

Dimensions (W x H x D)

5.5 x 1.6 x 8.4 inches (140 x 42 x 211mm)

Weight

40.9 ounces (1159.5 grams)

RF Carrier Power

VHF: 50/20/10/5W, UHF: 40/25/10/5W

    Manufacturer's Website


POWERWERX DB-750X Accessories and Related Items
EW1-DB-750X
EXTENDED 1 YEAR WARRANTY FOR DB-750X
EW1-DB-750X

$29.95
INCLUDE
EW2-DB-750X
EXTENDED 2 YEAR WARRANTY FOR DB-750X
EW2-DB-750X

$49.95
INCLUDE
LF-1-OEM
13.8V 20A LINE FILTER WITH OEM CONNECTORS
LF-1-OEM

$29.95
INCLUDE

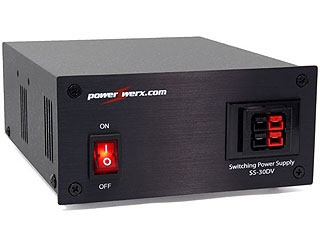

SS-30DV
