ICOM IC-R8600-02

ICOM IC-R8600-02

Wideband, Software Defined Receiver - 10kHz - 3GHz

HRO Discount Price: $2,599.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
IC-R8600-02 Description     Hide

Whether deployed with two receivers on a single 19-inch rack, or on your desk at home, the IC-R8600 is an impressive upgrade to any serious SIGINT team, interference research team, or the avid shortwave or receiver enthusiasts. Covering 10 kHz to 3 GHz, this communication receiver enables you to hear and see a wide variety of signals on a 4.3-inch color display. Additionally, the R8600 decodes diverse digital communication signals, while the advanced FPGA processing technology provides clarity and accuracy of received signals. With the optional remote control software for a Windows® PC, received audio and spectrum scope data can be transferred through an IP network for monitoring from remote locations.

RX frequencies:

  10kHz – 3GHz * See Specifications Below
Decodes digital including P25, NXDN™, D-STAR
RX analog including USB, LSB, FSK, CW, AM, S-AM, FM & WFM

Channels:

  2000 with 100 groups
100 scan skip channels
50 pairs scan edges

Versions:

  Cellular frequencies blocked or unblocked

Receiver performance

The R8600 has 11 discrete RF bandpass filters in the HF bands and 13 bandpass filters in the VHF/UHF bands. To prevent overflow, only the intended signal is passed, while it rejects any out of range strong interference signals. The R8600 provides +30dBm IP3 and 105 dB dynamic range at 14.1MHz. IP3 performance is +10dBm at 144 MHz and 0dBm at 440MHz.

Software demodulation in FPGA processing

The R8600 utilizes FPGA (Field Programmable Gate Array) and DSP units for demodulation, decoding and most signal processing. Direct HF signals and intermediate frequency signals, which are converted from VHF/UHF signals, are digitized in a 14-bit A/D converter and transferred to the FPGA and DSP for optimal processing. The high-rate 122.88 MHz sampling frequency used for the A/D converter results in superior aliasing and image reception reduction.

Software Demodulation in FPGA Processing

Real-time spectrum scope

An industry first for desktop wideband receivers, the IC-R8600 has a high-resolution real-time spectrum scope with a waterfall screen. The display offers first class performance in resolution, maximum 30 frames per second fast sweep speed, ±2.5 MHz wide scope span (display range) and 110dB of dynamic range (at ±2.5 kHz span). The waterfall screen allows you to find weak signals by showing the spectrum change over time. Tap the spectrum scope or waterfall screen to select as the operating frequency. The peak search function finds several peak frequencies within the scope range, and helps you to select these.

The spectrum scope offers the simultaneous operations found in some of the more expensive rigs! This means you can use either the spectrum scope or the waterfall to quickly move to an intended signal while listening to the receiver audio. The ‘R8600’s touch screen introduces a “Magnify” function. When you first touch the scope screen around the intended signal, the touched part is magnified. A second touch of the scope screen changes the operating frequency and allows you to accurately tune.

Intuitive operation

To efficiently acquire intended signals, the IC-R8600 user interface provides quick and accurate operation. The large 4.3-inch color display, with touch screen function, is configured to collect operating information. By tapping indications and icons on the screen, the setting menu will pop up and parameters can easily be adjusted. Push either the DIAL A, B or C multi-function control knobs to display various functions such as, scan speed, RF gain, audio tone, display backlight and more.


Pop up menu appears by pushing DIAL B

Functions menu for touch screen operation

RSSI (Received Single Strength Indicator)

The IC-R8600 shows S-meter, dBµ¬, dBµ¬ (emf) and dBm meter types in the RSSI. The dBµ¬, dBµ¬ (emf) and dBm meter has a high ±3 dBµ accuracy (between 0.5–1100 MHz) that can be used for measuring signal strength level.

Additional features

  • SD card slot for received log, decode log and voice recording
  • Screen capture function saves a screen shot in PNG or BMP format
  • I/Q signal output for use with future firmware upgrade and third-party SDR software and/or external decoding

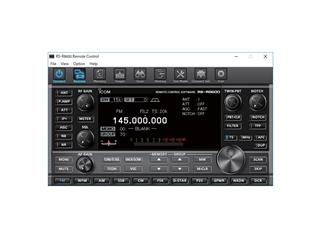

  • Remote control function through IP network or USB cable
  • Scans up to 100 channels per second in memory scan mode
    • Program scan/fine program scan
    • Priority scan
    • Memory scan
    • Selected memory scan
    • Selected mode memory scan
    • Auto memory write scan
  • Three antenna connectors: SO-239, phono (RCA), type-N



This device has not been approved by the Federal Communications Commission.This device may not be sold or leased, or be offered for sale or lease, until approval of the FCC has been obtained.


Specifications

General

Frequency coverage

0.010000–821.999999*, 851.000000–866.999999,
896.000000–3000.000000 MHz
*Guaranteed range: 0.100000–821.999999 MHz

Antenna connector

ANT 1 (0.01–3000 MHz): Type-N (50 O)
ANT 2 (0.01–30 MHz): PL-259 (50 O)
ANT 3 (0.01–30 MHz): RCA (500 O)
Frequency stability Less than ±0.5 ppm (at 25°C after warm up) Mode USB, LSB, CW, FSK, AM, FM, WFM, Digital
(D-STAR, P25 Phase 1, NXDN, dPMR, DCR) Number of channels 2000 regular with 100 groups, 200 auto memory write, 100 skip and 100 scan edge channels Scan types Programmed, memory, selected memory, selected mode, auto memory write, priority scan and ?f scan Power supply requirement 13.8 V DC ±15% DC current drain Stand-by: 1.8 A, Maximum audio: 2.0 A Operating temperature range –10 °C to +60 °C; 14 °F to 140 °F Frequency resolution 1 Hz Dimensions (W × H × D)
(projections not included) 220 × 90 × 230 mm; 8.7 × 3.5 × 9.1 in Weight (approximately) 4.3 kg; 9.5 lb
Receiver
Receiver system
0.010–29.999 MHz
30.000–499.999 MHz
500.000–1099.999 MHz
1100.000–1499.999 MHz
1500.000–3000.000 MHz MHz

Direct sampling
Double superheterodyne (IF: 778.7, 46.35 MHz)
Double superheterodyne (IF: 278.7, 46.35 MHz)
Triple superheterodyne (IF: 900–500.000001, 278.7, 46.35 MHz)
Triple superheterodyne (IF: 1000–500, 278.7, 46.35 MHz)

Sensitivity*1 (Preamp ON)

SSB/CW/FSK
  (at 10 dB S/N)





AM
   (at 10 dB S/N)




FM
  (at 10dB S/N)




WFM
   (at 12 dB SINAD)





D-STAR, NXDN, dPMR
   (1% BER)





P25
   (5% BER)



0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz

0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz

0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz

0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz


0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz


0.1– 1.799 MHz
1.8– 29.999 MHz
30– 1099.999 MHz
1100– 1999.999 MHz
2000– 3000 MHz


–6 dBµ
–14 dBµ
–10 dBµ
–10 dBµ
–8 dBµ

16 dBµ
8 dBµ
15 dBµ
15 dBµ
15 dBµ

-
–6 dBµ*2
–6 dBµ
–6 dBµ
–4 dBµ

-
-
3 dBµ
3 dBµ
5 dBµ


-
–2 dBµ*2
–2 dBµ
–2 dBµ
0 dBµ


-
–5 dBµ*2
–5 dBµ
–5 dBµ
–3 dBµ

*1 BW: WFM=180 kHz, FM=15 kHz, AM=6 kHz, SSB/FSK=2.4 kHz, CW=0.5 kHz
*2 28–29.999 MHz

Selectivity

LSB/USB/FSK (BW: 2.4 KHz)


CW (BW: 500 Hz)


AM (BW: 6 kHz)


FM (BW: 15 kHz)


WFM


More than
Less than

More than
Less than

More than
Less than

More than
Less than

More than
Less than

2.4 kHz/–3 dB
3.6 kHz/–60 dB

500 Hz/–3 dB
700 Hz/–60 dB

6.0 kHz/–3 dB
15.0 kHz/–60 dB

12.0 kHz/–6 dB
25.0 kHz/–60 dB

180 kHz/–6 dB
-

Spurious and image rejection
0.010–29.999 MHz
30.000–1099.999 MHz
0.010–29.999 MHz
30.000–1099.999 MHz

(Analog mode operation)
More than 70 dB
More than 50 dB
More than 40 dB*3
More than 40 dB*3

*3 More than 35 dB for 1st lF through above 1100 MHz. More than 30 dB for 1st lF image above 2000 MHz.

Audio output power More than 2.0 W (8 O load, 10% distortion)


All stated specifications are subject to change without notice or obligation.

Supplied accessories

  • DC power cable
  • Fuses & plugs



    Manufacturer's Website

IC-R8600-02 Accessories and Related Items
IC-SP39AD

IC-SP39AD

External speaker with 15V/2A power supply for the R8600
