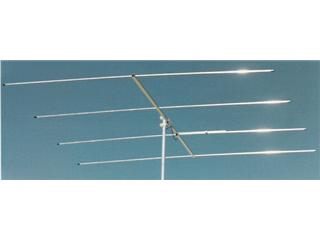

This is a direct scale of the Arrow 4 Element 2 meter Yagi.
Manufacturer's Website Product Website
Elements are 3/8" Solid Aluminum
Boom is 1" sq. Tube, Length is 115 inches (2 piece)
In Line (Direct Feed) Gamma Match with SO239 Connector
Instructions show how to adjust for a center frequency from 50 MHz. to 54 MHz.
(2:1 Bandwidth is over 4 MHz.)
(Maximum power is 150 Watts.)
Mounting Hardware included. (Stainless Steel and Zinc coated.)
Mounts horizontally or vertically on a mast up to 1 1/2 inches using our original saddle design or on a mast up to 2 inches using modified mounting plate and zinc u-bolts.
