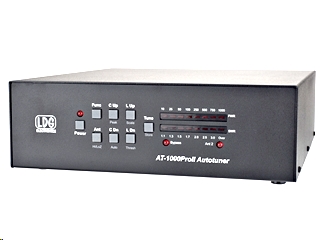

Building on the success of the AT-1000Pro, LDG Electronics has refined and expanded its flagship 1 KW tuner.
The new AT-1000ProII keeps many of the same features of the previous model, but simplifies the operation. With the two position antenna switch there are 2,000 memories that store tuning parameters for almost instantaneous memory recall whenever you transmit on or near a frequency you’ve used before. Just key and it tunes! The AT-1000ProII will operate at any power level between 5 and 1,000 Watts peak RF input.
The AT-1000ProII has a large, easy to read bargraph with two selectable scale ranges (100 and 1,000 Watts) as well as SWR meter. The AT-1000ProII will interface with many popular transceivers, enabling their TUNE button to control the AT-1000ProII’s operation. Dedicated control buttons allow you to fine-tune capacitance and inductance on those rare occasions when the AT-1000ProII can’t find a perfect match by itself.
The AT-1000ProII will tune from 1.8 to 54.0 MHz continuously, and will match an amazing range of antennas, from Yagis and dipoles to inverted-Vs and slopers; virtually any coax-fed antenna from 6 to 1000 Ohms impedance (16 - 150 Ohms on 6 meters). Tuning time is usually under 10 seconds. If you’re transmitting near a frequency with stored tuning parameters, it will set those parameters in under 0.2 seconds. Longwires or antennas fed with ladder line require an external balun.
(Analog M1000 meter shown is an option)
All LDG products include the new 2-year warranty on parts and labor. The AT-1000Pro also includes the DC power cable only as you will need a 13.6 VDC source.
