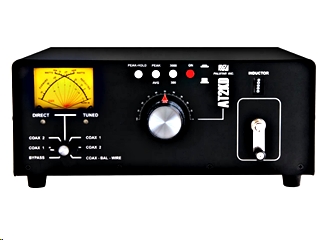

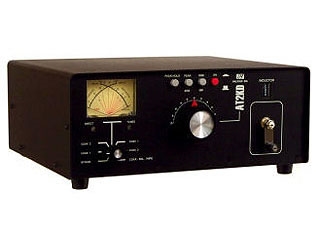

The Palstar AT2KD antenna tuner covers 6 to 160 Meters with a power rating of up to 2000 watts PEP and is identical in all respects to the AT2K except instead of three controls, the tuner features just two to tune your antenna.
The AT2KD matches dipoles, center fed doublets, Verticals, end-fed wire, delta loops, beams, Windoms, Inverted V's and an optional external 4:1 or 1:1 current balun for balanced wire feeders can be purchased during check-out.
Featuring a 6 position antenna selector switch, the AT2KD offers forward power metering in two ranges, 300 and 3000 watts.
Also included is Pastar's Active Peak and Peak Hold dual cross-needle metering from the popular PM2000A wattmeter. Standing Wave Ratio measurements are displayed with an illuminated cross-needle meter. SWR is read directly from the meter face where the Forward and Reverse needles cross.
Add 11 Ga. (.090" thick) iridite-treated aluminum metalwork and durable powder coated finish on the front panel and top cover, and you have the AT2KD, a premium quality differential antenna tuner.
Output Power: 2000 Watts PEP
HF Bands: 160m to 6m (assuming resistive load)
Tuning: Two controls

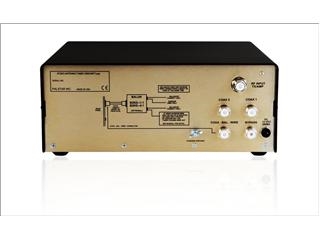

Antenna switching: 6 position mode switch for multiple antennas

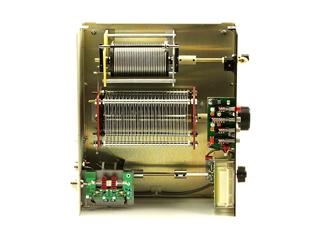

Capacitor: Differential with 2 stators and 1 rotor; 13pF - 420pF@5kV
Roller inductor: silver-plated inductor wheel shaft and contact wheel on ceramic body
Impedance: matching range 20 Ohms to 1200 Ohms
Metering: Active crossneedle Peak/Peak Hold with backlighting
Meter power range: 0-300 Watts/0-3000 Watts
Power Input: 12 VDC 200 mA
Power cable supplied
Requires power supply
Balun: Optional external 1:1 or 4:1 current
Chassis: .090 ga. aluminium gold iridite coated
Top cover: .090 ga. aluminium powder coated
Front cover: .090 ga. aluminium powder coated
Dimensions: 13.2" wide x 5.75" high x 12" deep
Shipping weight: 12 lbs
Warranty: One year
