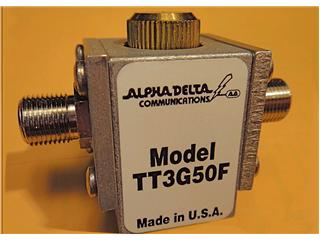

ALPHA-DELTA ATT3G50F

ALPHA-DELTA ATT3G50F

Surge Protector 200 Watts to 3 GHz F Connectors Female 75 Ohms

HRO Discount Price: $78.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
ATT3G50F Description     Hide

200 W to 3 GHz F-Con Surge Protector Female/Female 75 Ohms

Transi-Trap Surge Protectors are gas surge arresters designed to protect sensitive electronic equipment from damage due to excess voltage or currents generated by transient phenomena (lightning or static buildup). The elements in the Arc-PlugTM Cartridge consist of two metal electrodes hermetically sealed in a rugged gas filled, ceramic cylinder. They perform as voltage-dependent switches which can reliably and repeatedly carry large currents for brief periods of time. In operation, a sufficient voltage across the element cause an arc to form between the electrodes, changing its impedance from greater than 10,000 meg-Ohms to a few milli-Ohms in less than 100 nanoseconds time. While conducting in the arc mode, the voltage across the surge arrester is less than 30 Volts.
