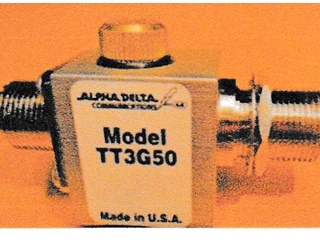

2 KW to 500 MHz 3/4" In. Long Bulkhead Surge Protector F/F
This is the UHF Bulkhead model and is designed for mounting through a metal panel up to .125 inch thick. It grounds to the panel through the bulkhead connector and mounting hardware. The bulkhead panel must be properly grounded to provide protection.
Transi-Trap Surge Protectors are gas surge arresters designed to protect sensitive electronic equipment from damage due to excess voltage or currents generated by transient phenomena (lightning or static buildup).
The elements in the Arc-PlugTM Cartridge consist of two metal
electrodes hermetically sealed in a rugged gas filled, ceramic
cylinder. They perform as voltage-dependent switches which can
reliably and repeatedly carry large currents for brief periods of time. In operation, a sufficient voltage across the element cause an arc to form between the electrodes, changing its impedance from greater than 10,000 meg-Ohms to a few milli-Ohms in less than 100 nanoseconds time. While conducting in the arc mode, the voltage across the surge arrester is less than 30 Volts.
