Bioenno Tech LLC / Bioenno Power BLF-2440A

Bioenno Tech LLC / Bioenno Power BLF-2440A

24V, 40Ah LFP Battery (PVC, BLF-2440A)

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $709.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
BLF-2440A Description     Hide

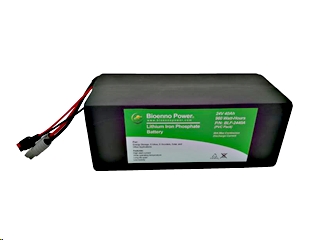

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-2440A is a state of the art 24V 40Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, various robotics and military radios operating at 24V. This battery features a small and compact form factor designed for the smallest footprint. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 8A, with DC barrel plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-2440A User Manual [PDF]

BLF-2440A Battery Specifications
Voltage: 24V
Capacity: 40Ah
Case Type: PVC Pack
Charge Connector:  Anderson Powerpole PP45
Discharge Connector:  Anderson Powerpole SB50
Maximum Continuous Discharge Current: 40A (Make sure your load consumes less than 40A)
Maximum Peak Discharge Current: 80A (5 sec.)
Maximum Continuous Power:  960 Watts (24V x 40A = 960 Watts) (Make sure your load consumes less than 960 Watts)
Dimensions:(L x W x H) 12.4 in. x 4.8 in. x 5.8 in. (315 mm x 122 mm x 147 mm)
Weight: 20.9 lbs. (9.5 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
Available 110VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 110VAC/220 VAC
Output Voltage: 29.2VDC
Current: 4A
Connector:  Anderson Power Pole (35A)
Model Number: BPC-2404A
