Frequency: 1.8-200 MHz
Power Range Forward: 20/200/3000 Watts
Accuracy: +/- 10% (at full scale)
SWR Detection Sensitivity: 5 W min
Input/Output Impedence: 50 Ohms
Input/Output Connectors: SO-239
Dimensions & Weight: 6.25" x 4.3" x 4.8" / 2 lbs. 3oz.

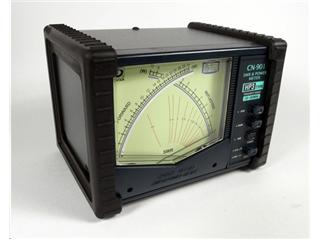

Cross needle movement allows the simultaneous monitoring of forward power, reflected power, and SWR without the need of an extra calibration procedure.
New High Power version switchable for 30, 300, or 3000 Watt full scale forward watt readings. Built-in lamp. Meter requires external 13.8 VDC source.
Supplied with DC power cord.
