Frequency: 140-525 MHz
Power Range Forward: 20/200 Watts
Accuracy: +/- 10% (at full scale)
SWR Detection Sensitivity: 5 W min
Input/Output Impedence: 50 Ohms

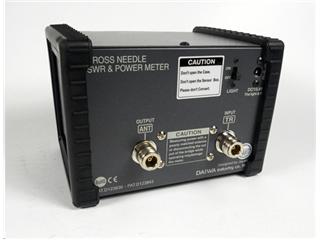

Input/Output Connectors: Type N female
Dimensions & Weight: 6.25" x 4.3" x 4.8" / 2 lbs. 3oz.
LED Lighted with on/off switch

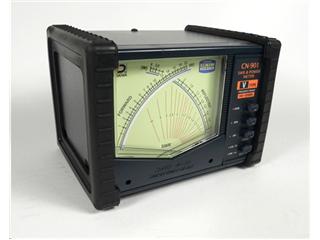

SWR and Power indicators are installed in one meter unit. One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same time.
