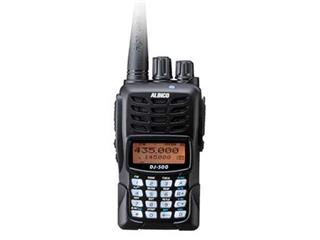

ALINCO DJ-500TB

Name: ALINCO DJ-500TB
Brand: ALINCO
SKU: H0-016057
Price: 124.95 USD
Availability: OutOfStock

200ch VHF/UHF HT 2-Tone/5-Tone - Special Order

Special Order Item!*

HRO Discount Price: $124.95^*

*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

*This item is ordered directly from the factory. In some cases it may be drop shipped directly to you.

For current inventory status please contact your local Ham Radio Outlet and a salesperson will assist you.

DJ-500TB Description Hide

Full of advanced features, the DJ-500TB offers powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard, along with a variety of tone bursts for repeater access or selective calling. A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-500TB looks simple, but remember, looks can be deceiving!

Features:

Large, dot-matrix, 3 color-selectable display and keypad
FCC Part 90 Certified for commercial use.
Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
200 memory channels, any mix of VHF/UHF
Internal VOX
Alphanumeric channel labels
Direct frequency input from keypad
Variety of scanning modes
IP54 dust/splash proof, MILSPEC vibration/shock compliant
Wide and narrow FM TX/RX1

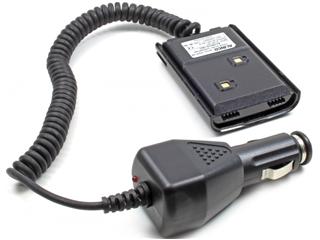

12Vdc input using an optional cigar-socket adapter.
Wire cloning capability

SPECIFICATIONS Frequency range: [TX/RX] 136-174 MHz. 400-480 MHz
RX only: 76-108 MHz (FM) Modulation: F3E(16K0F3E / 11K0F3E / RX only WFM) Frequency step: 2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50 kHz Memory channel: 200 memory channels in total + 1 call channel/band + 1 Repeater-Access parameter memory/band Antenna impedance: 50 ohm unbalanced Frequency stability: ±2.5 ppm Supply voltage: 7.4 V (Battery) Current consumption:
(Typical value) 1600 mA TX / 320 mA receive at Max audio output 100 mA squelched Temperature range: -4°F~131°F (-20°C ~ +55°C) Ground: Negative Dimensions: 2.32W×3.86H×1.38D in (59.0W×98.0H×35.0D mm) Weight:
Approx. 227g or 8.01oz inclusive of battery pack and antenna TRANSMITTER Power output: Approx.5 / 2.5 / 1 W (USA), 5/2.5/0.2 W (Canada) Modulation: Variable reactance FM Spurious emission: -60dB or less Max. deviation: FM : +/- 5KHz NFM: +/- 2.5KHz RECEIVER System: Direct-conversion Sensitivity: Wide -12dBu / Narrow -9dBu Intermediate frequency: 1st IF 38.85 MHz 2nd IF 450 kHz Selectivity: -6 dB : Wide 12 kHz /Narrow 10 kHz or more
-60 dB :Wide 30 kHz / Narrow 24 kHz or less AF output: 1W (10% distortion) STANDARD ACCESSORIES
