Newly Redesigned Compact Power Supply
Alinco's redesigned DM-430TR is an Ultra-Compact DC Switching Power Supply with Digital display and advanced technology featuring Anderson Powerpole® connectors supporting 5-15VDC variable output and delivers up to 30A peak power designed for hobbyist and 2-Way Radio communication product use.

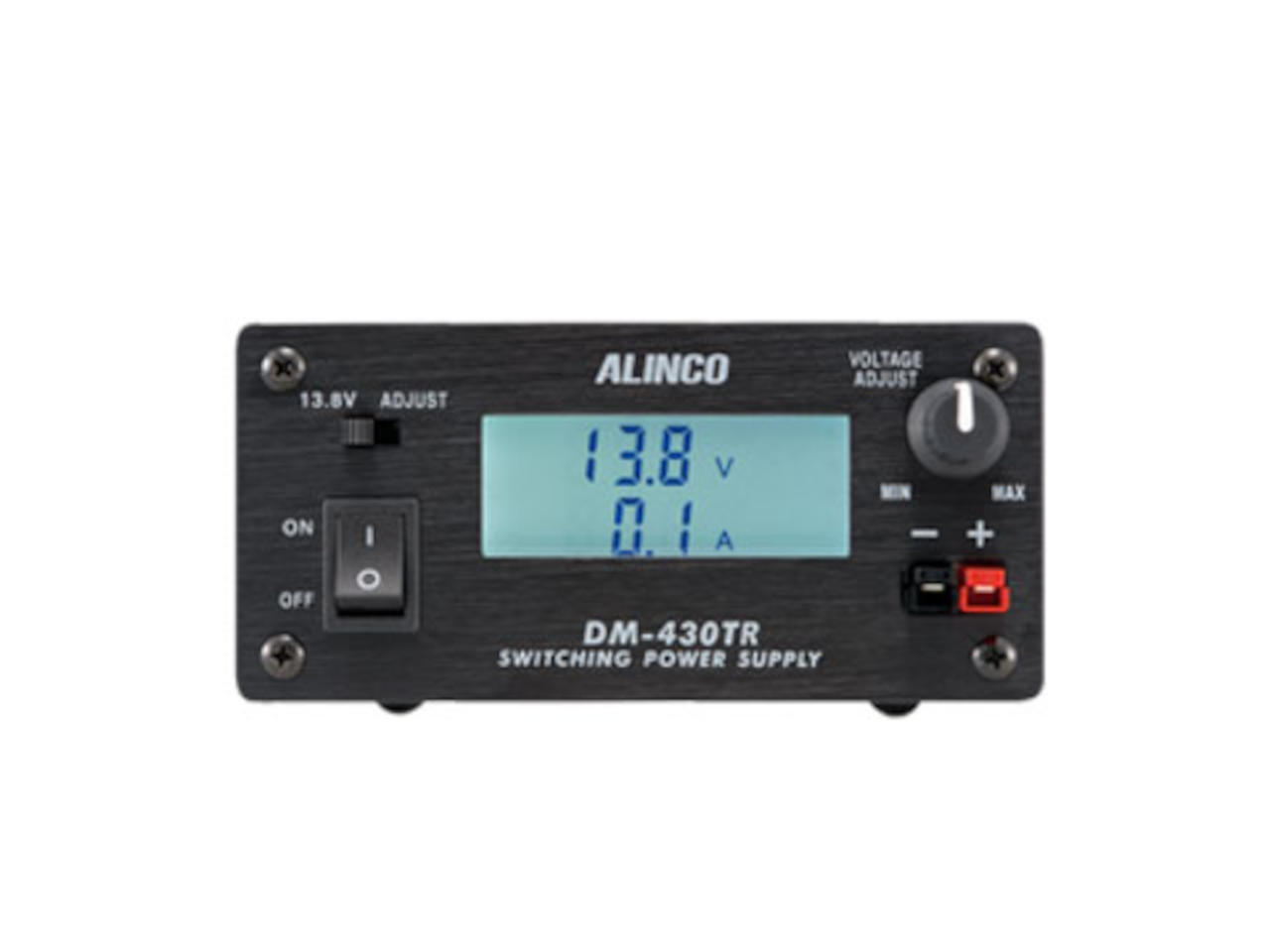

Features include a large illuminated digital Volt/Amp meter, rear panel binding posts (30A peak/a pair), added front panel 30A/peak Anderson PowerPole® terminals provides versatility and quick connections, voltage adjust (5-15V) or fixed at 13.8V, ripple less than 80mVp-p and protection for short-circuit, over temperature, and current limiting!
Features
- The output voltage is continuously adjustable from 5 to 15Volts DC, or fix it at rated 13.8V
- A highly visible, accurate digital Volt / Amp meter allows real-time monitoring of the output current..
- A set of Anderson Powerpoles connectors on the front panel quick plug-in/out as well as adds an extra versatility.
- Forced Air Cooling Designed with reliability in mind, a durable cooling fan keeps DM-430 running continuously under heavy loads.

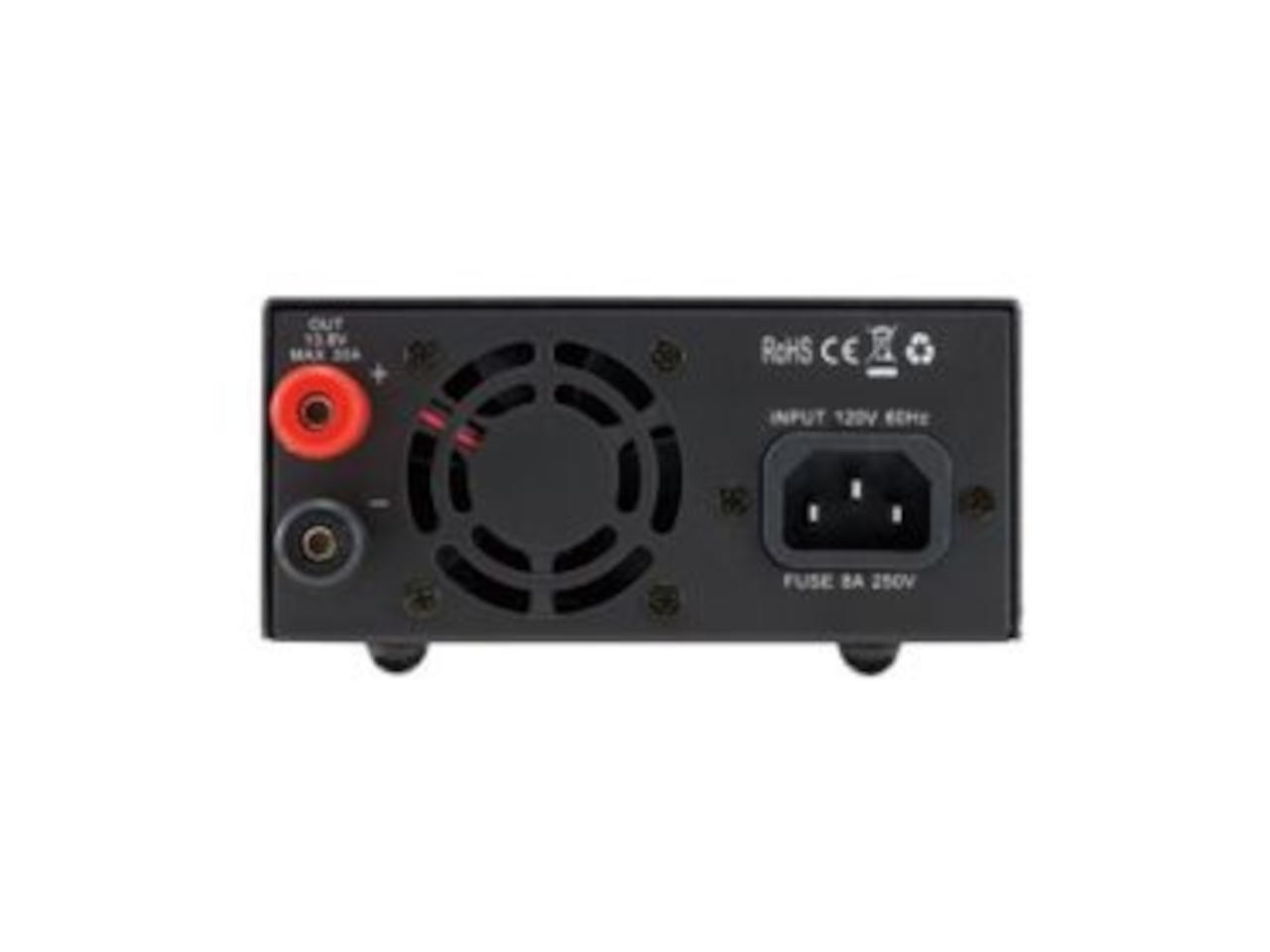

- The Rear main output terminals are large enough to provide an efficient Max 30A power transfer to your equipment.
