This antenna mounting bracket is designed
for installation on these specific vehicles:
- Ford F-150: 2015-2018
- Ford Superduty F-250, F-350, F-450, F-550 2017-2018
- Expedition 2018
No Holes To Drill

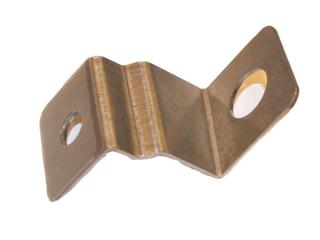

L Bracket Fender Mount with a 3/4" Hole for use with NMO style antennas
10mm socket and driver, or 10mm box end wrench
Left front fender
Always check for continuity between the bracket and chassis ground. If there is a
problem with grounding, place the provided star washer between the bracket and the fender.
Step 1) Set the parking brake. Open hood and locate 10mm bolt near the center of the front fender. Remove bolt.
Step 2) Align the antenna bracket with the bolt hole. Reinstall the bolt and tighten.
Step 3) Insert the NMO or required connector to mate with the antenna and tighten securely.
NOTE: NMO type mounts are designed to be installed from the top of the bracket, coax first.
