FlexPlanePRO - Preassembled Semi-Permanent Groundplane
When the focus is on simple set-up, a FlexPlanePRO delivers. It’s the perfect groundplane for almost any operating location.

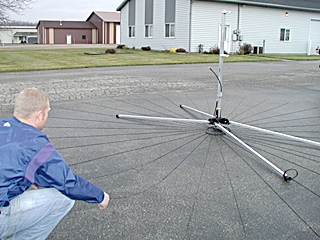

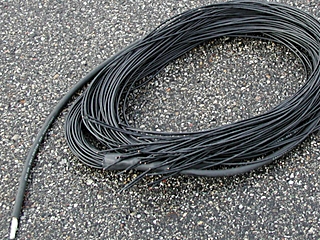

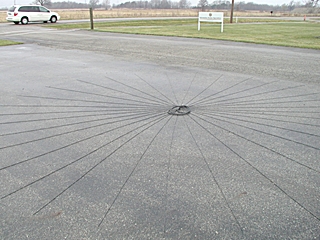

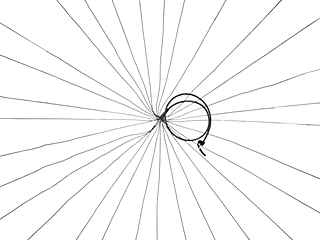

Because it’s all one piece, there is no assembly is required. It’s fabricated of 32 stranded radial wires with a high flexibility 4-gauge lead that’s 5 feet long and can be connected to any ground point. A FlexPlanePRO can be deployed on the surface of the ground, elevated or buried. You can even roll it up if you have to roll.
FlexPlanePRO – Standard Flexibility
- Deployment: Surface, elevated or buried; permanent or temporary
- Radial Count: 32
- Radial Length: 25 ft
- Radial Wire Type: Stardard Flexibility - 14 AWG stranded, insulated
- Radial Wire Composition: 19 - 27 AWG strands
- Ground Lead Type: High Flexibility - #4 AWG stranded, insulated
- Ground Lead Wire Composition: 374 - 30 AWG strands; 60" length, with bare/soldered termination
- Approx Finished Weight: 14 lbs (25')
