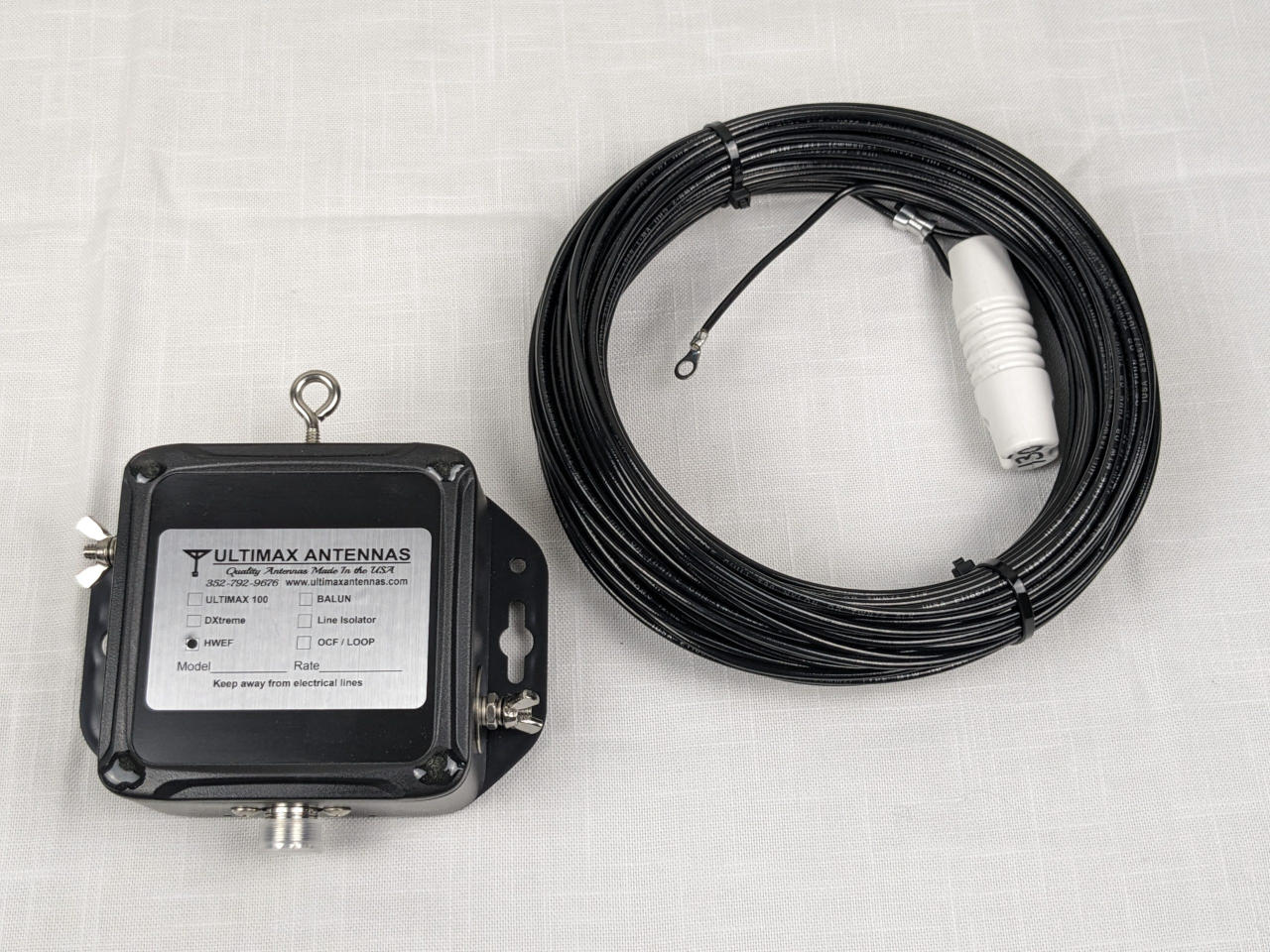

The ULTIMAX Half-Wave End-Fed Antenna is the perfect antenna for those that prefer not to use an Antenna Tuner, as the antenna will be pretty close to a perfect resonant frequency on all Amateur Bands.
The Antenna handles near legal limit (SSB)
The Antenna behaves just like the common dipole but is fed on one end.
Technical Specs:
- Antenna Tuner: Not Required most of time
- Frequency Coverage: 10 to 40 Meters
- Power handling: 1200W SSB PEP / 250W CW Carrier Max
- Winding: Teflon Heavy film insulated wire
- Core: Low permeability Ferrite Toroid
- Hardware: Stainless Steel
- Connector: SO-239
- Enclosure: ABS
- Insertion loss: 0.3-0.5
Wire Length:
- 40 to 10 Meters – 66′ ft. wire length
Download The Instructions in PDF format below
ULTIMAX-HW-END-FED-INSTRUCTIONS.pdf
