POLYPHASER IS-B50LN-C2-MA

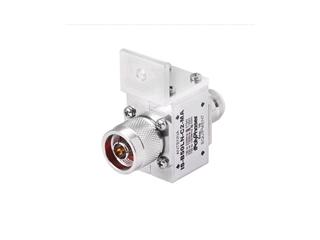

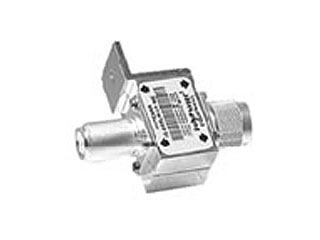

POLYPHASER-IS-B50LN-C2-MA-Image-1 POLYPHASER-IS-B50LN-C2-MA-Image-2

POLYPHASER IS-B50LN-C2-MA

125 - 1000 MHz DC Blocked Bulkhead Mount Lightning Arrestor - N-F Equipment Port / N-M Surge Port

HRO Discount Price: $74.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
IS-B50LN-C2-MA Description     Hide

The Polyphaser IS-B50LN-C2 is a coaxial surge protector. It assures surge voltages and currents are prevented from being passed to other equipment. DC blocked, low loss, wide frequency range, low VSWR, aluminum enclosure, multiple strike capability.

Mount Type Bulkhead
Frequency Range 125 MHz to 1 GHz
Protected Side Connector
 N Female
Surge Side Connector N Male
Turn On Voltage 600 VDC ± 20%
VSWR = 1.1:1 over frequency range
Insertion Loss = 0.1 dB
RF Power VHF 375 W, UHF 125 to 50 W
