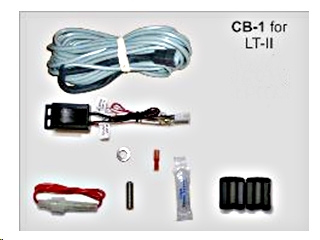

Supplied with 32" whip, 20 ft. of plug & play control cable, manual control box, ferrite decoupling core and 3/8-24 stud.
ANTENNA SPECIFICATIONS
Lower Mast Size -- 1 1/2"
Lower Mast Length -- 16"
Whip Length -- 32"
Total Length of Antenna in 54 MHz position -- 48"
Total Length of Antenna in 3.5 MHz position -- 54"
Frequency Coverage Continuous -- 3.5 to 54 MHz
Power Rating -- 200 watts P.E.P. SSB
50 watts P.E.P. All other Modes
Typical SWR -- 1.5 or less
Weight -- 1.9 lbs.
When using the Little Tarheel II with a 56" whip.
Frequency Coverage Continuous -- 3.4 to 30 MHz
You will see about:
1 dB increase on 20 meters
3 dB increase on 40 meters
5 dB increase on 75 meters
