DIAMOND MGC50

DIAMOND MGC50

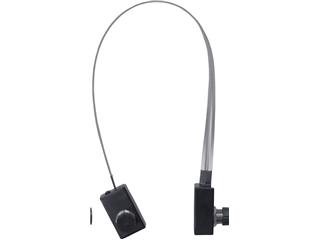

Window Feedthrough Cable - DC to 1500 MHz

HRO Discount Price: $53.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
MGC50 Description     Hide

Specifications:

Frequency: DC to 1500 MHz
Max Power Rating: HF to 50 MHz: 150 Watts (SSB), 50 Watts (FM/CW),
144 MHz: 40 Watts (FM) , 440 MHz: 30 Watts (FM),
1200 MHz: 10 Watts (FM)
Length: 19.7" (between connectors)
Weight: 102g
Connector: UHF Female to UHF Female
VSWR: HF up to 500 MHz: Less than 1.2
500 to 1000 MHz : Less than 1.3:1.
Up to 1000MHz: Less than 2.0:1.
1200 MHz: Less than 1.7:1.
Impedance: 50 Ohms
Insertion Loss: 144 MHz: Less than 0.3 dB
440 MHz: Less than 0.6 dB
1200 MHz: Less than 1.6 dB
