Easily add Powerpole outputs to your dashboard, go-box, panel or chassis mount. Weather tight rubber cover protects connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (4) 30A contacts for 12-14 AWG wire. Fits 1-1/8" dia. hole. User removable retaining pin allows for changing Powerpole connectors to different colors if needed.
The only weather tight panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to 45A) output on your dashboard, go-box, panel or chassis.

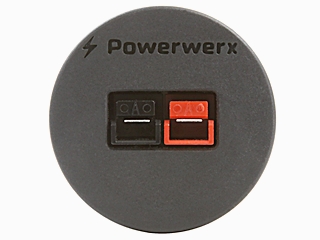

High Output Panel Mount
- Includes (1) Anderson Powerpole connector, rated up to 30 amps continuous operation. Optional 261G2-LPBK contacts allow operation up to 45 amps with 10 AWG wire size.
Protective Weather Tight Cover
- Included weather tight protective cover which seals front mounted Powerpole connectors when not in use.
Anderson Powerpole Connectors
- Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.
Standard Mounting Hole
- 1 1/8" standard panel mounting hole compatible. Ideal for go-box, dashboard or chassis mounting.
Tech Specs:
| Connections: |
Supplied with (1) Red/Black Powerpole Connector. Customer may purchase alternate colored housings and change colors as needed. |
| Compatibility: |
Mates with all 15, 30 & 45 amp Powerpole connectors |
| Maximum Voltage: |
58VDC |
| Maximum Amperage: |
Up to 45A each Powerpole connector (continuous). Includes: 30A Powerpole contacts for 12-14 AWG wire. |
| Mountable: |
1-1/8" diameter standard panel mounting hole. |
| Rear Housing Depth: |
7/8" (not including wiring) |
| Includes: |
Includes: Single Body in Black color, (1) Powerpole Red/Black connector, (2) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut |
