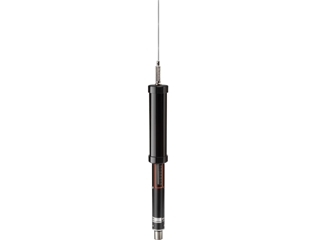

DIAMOND SD330 3/8

DIAMOND SD330 3/8

Screwdriver Antenna HF 3 - 30 MHz - 200 Watts - 73 Inches Maximum - 3/8 - 24 Mount

HRO Discount Price: $399.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
SD330 3/8 Description     Hide

Bands: 3.5 - 30 MHz
Power Supply voltage & current: DC 12V 100mA
Max Power Rating: 200 Watts (SSB)
Height: Approx. 66" (28 MHz)
               Approx. 73" (3.5 MHz)
Weight: 1.1 kg
Connector: 3/8 24 Thread
Type: 1/4 wavelength center loading
VSWR: Less than 2.0 / Impedance: 50 Ohms
Up-down time: Approx. 50 sec. (3.5-30 MHz )
                             Approx 20 sec. (7-30MHz)

NOTE: The SD330 uses the car body for its ground. The bracket and the car body need to be well grounded.
Comes with OPE750 for tuning 7-50 MHz.

Now includes sensor and 4 pin connector for use with automatic screwdriver antenna tuners
