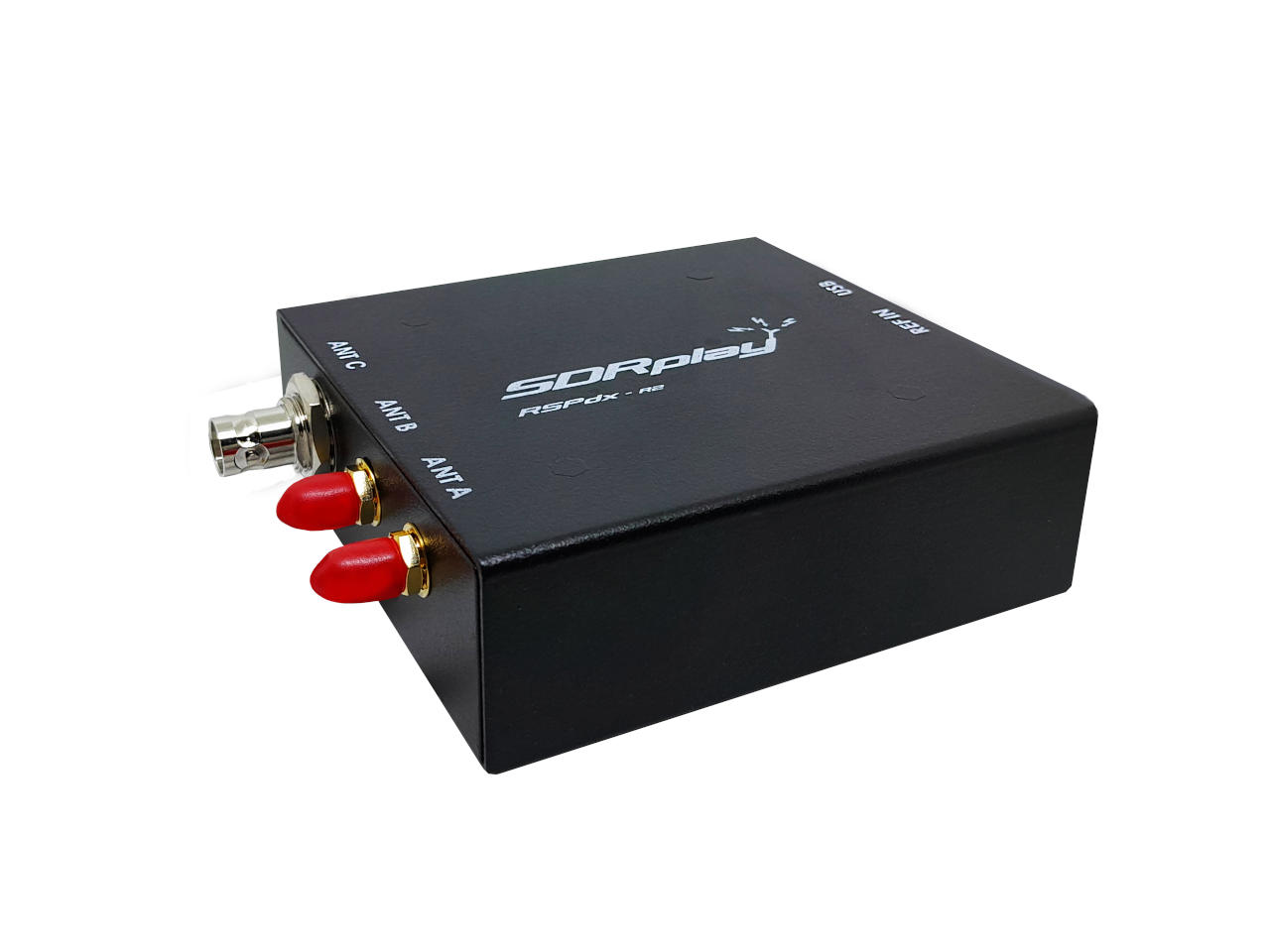

The SDRplay RSPdx-R2 is an enhanced version of the popular RSPdx and is a wideband full-featured 14-bit SDR which covers the entire RF spectrum from 1kHz to 2GHz. Combined with the power of readily available SDR receiver software (including ‘SDRuno’ for Windows and Multi-Platform ‘SDRconnect’ supplied by SDRplay) you can monitor up to 10MHz spectrum at a time.
The RSPdx provides three software selectable antenna inputs, and an external clock input. All it needs is a computer and an antenna to provide excellent communications receiver functionality. A documented API allows developers to create new demodulators or applications around the platform.
Key Benefits & Features:
- Covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
- Receive, monitor and record up to 10MHz of spectrum at a time
- Significantly improved noise performance below 1MHz (i.e. for some MF, LF and below)
- Improved dynamic range below 2MHz both in tuner mode and HDR mode
- HDR mode below 2MHz giving overall dynamic range and selectivity advantages
- Software selectable choice of 3 antenna ports
- External clock input for synchronisation purposes, or connection to GPS reference clock for extra frequency accuracy
- Excellent dynamic range for challenging reception conditions
- Free use of Windows-based SDRuno software (check website for versions supported)
- Free use of SDRconnect SDR and server software for Windows, MacOS and Linux (Check website for versions supported)
- Multiplatform driver and API support including Windows, Linux, Mac, and Raspberry Pi 4/5
- Strong and growing software support network
- Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability)
- Documented API provided to allow demodulator or application development on multiple platforms
Specifications:
General:
- Weight 315g
- Size: 113mm x 94mm x 35mm
- Low current consumption:
- 190mA @ >60MHz (excl Bias T)
- 120mA @ <60MHz (excl Bias T)
Connectivity:
- USB 2.0 (high speed) type B socket
Frequency Range:
- Continuous coverage 1kHz – 2GHz
Antenna A Port Characteristics:
- 1kHz – 2GHz operation
- 50Ω input impedance
- SMA female connector
Antenna B Port Characteristics:
- 1kHz – 2GHz operation
- 50Ω input impedance
- SMA female connector
- Selectable 4.7V DC out (see Bias T)
Antenna C Port Characteristics:
- 1kHz – 200MHz operation
- 50Ω input impedance
- BNC female connector
Antenna Port Isolation:
- Unselected port isolation 40dB min
Reference Clock Input:
Bias T (Antenna B Port only):
- Software selectable 4.7V @ 100mA
IF Modes:
- Zero IF, All IF bandwidths
- Low IF, IF bandwidths ≤ 1.536MHz
IF Bandwidths (3dB):
- 200kHz
- 300kHz
- 600kHz
- 1.536MHz
- 5.0MHz
- 6.0MHz
- 7.0MHz
- 8.0MHz
ADC Characteristics:
- Sample frequency 2 – 10.66MSPS
- 14-bit native ADC (2 – 6.048MSPS)
- 12-bit (6.048- 8.064 MSPS)
- 10-bit (8.064- 9.216MSPS)
- 8-bit (> 9.216 MSPS )
Maximum Recommended Input Power:
- 0dBm continuous
- 10dBm for short periods
Reference:
- High temp stability 0.5PPM TCXO
- In-field trimmable to 0.01 ppm
External Reference Clock:
- Plug in the external clock before power-up. Auto-detect will switch to the external reference
- Frequency 24MHz sine/square wave
- 1V Pk-Pk Min
- 3.3V Pk-Pk Max
Typical Noise Figures:
- 19dB @ 300kHz
- 18dB @ 2MHz
- 17dB @ 12MHz
- 15dB @ 25MHz
- 15dB @ 40MHz
- 2.6dB @ 100MHz
- 2.1dB @ 200MHz
- 6.0dB @ 340MHz
- 3.1dB @ 660MHz
- 4.4dB @ 1500MHz
- 5.0dB @ 1800MHz
Notch Filters:
FM Notch Filter:
- >30dB 77 – 115MHz
- >50dB 85 – 107MHz
- >4dB 144 – 148MHz
MW Notch Filter:
- >15dB 400 – 1650kHz
- >30dB 500 – 1530kHz
- >40dB 540 – 1490kHz
DAB Notch Filter:
- >20dB 155 – 235MHz
- >30dB 160 – 230MHz
Front End Filtering:
Low Pass:
Band Pass:
- 2-12MHz
- 12-30MHz
- 30-60MHz
- 60-120MHz
- 120-250MHz
- 250-300MHz
- 300-380MHz
- 380-420MHz
- 420-1000MHz
High Pass:
Note: The notch filters above are software selectable and remove specific broadcast bands.
