DIAMOND SP1000PW

DIAMOND SP1000PW

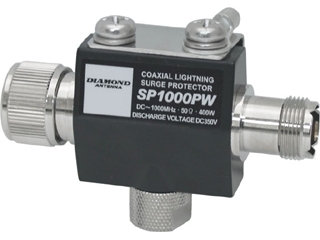

Lightning Arrestor DC - 1000 MHz 400 Watts PEP SO-239 Connectors - Waterproof

HRO Discount Price: $34.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
SP1000PW Description     Hide

Specifications:

Frequency Range: DC - 1,000 MHz
SWR: less than 1.2
Insertion Loss: less than 0.3 dB
Max Power Rating: 400 Watts PEP
Connector: UHF male - UHF female
Impulse Wave Discharge Voltage: 800 Volts
Impulse Wave Discharge Capacity: 6000 Amps
Impulse Wave Retention Discharge Capacity: DC 350 Volts ± 20%
Insulating Resistance DC 100 Volts: Over 10,000 M Ohms
Weight: 130 g
Dimensions: 78Wx55Hx26D mm
Impedance: 50 Ohms
