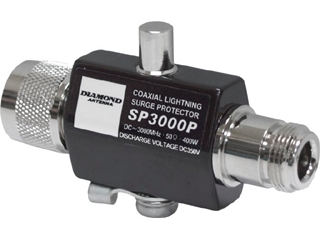

DIAMOND SP3000P

DIAMOND SP3000P

Lightning Arrestor DC - 3000 MHz 400 Watts PEP N Connectors

HRO Discount Price: $41.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
SP3000P Description     Hide

Frequency Range:	DC - 3,000 MHz
SWR:	less than 1.2:1
Insertion Loss:	less than 0.3 dB
Max Power Rating:	400 Watts PEP
Connector:	Type N female / Type N male
Impulse Wave Discharge Voltage:	1000 Volts
Impulse Wave Discharge Capacity:	6000 Amps
Impulse Wave Retention Discharge Capacity:	DC350 Volts  ± 20%
Insulating Resistance DC 100 Volts:	Over 10,000 M Ohms
Weight:	 110 g
Dimensions:	77Wx41Hx21D mm
