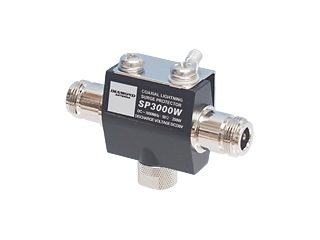

DIAMOND SP3000W

DIAMOND SP3000W

Lightning Arrestor DC - 3000 MHz 400 Watts PEP N Connectors - Waterproof

HRO Discount Price: $41.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
SP3000W Description     Hide

• The SP3000W is waterproof.

Specifications:
Frequency:	DC - 3,000 MHz
SWR:	less than 1.1
Insertion Loss:	less than 0.2 dB
Max Power Rating:	200 Watts PEP
Connector:	Type N female – Type N female
Impulse Wave Discharge Voltage:	1000 Volts
Impulse Wave Discharge Capacity:	6000 Amps
Impulse Wave Retention Discharge Capacity:	DC 230 Volts ± 20%
Insulating Resistance DC 100 Volts:	Over 10,000 M Ohms
Weight:	0.25 lbs. / 113g
Dimensions:	3.1"x1.6"x0.8" / 78Wx41Hx20D mm
