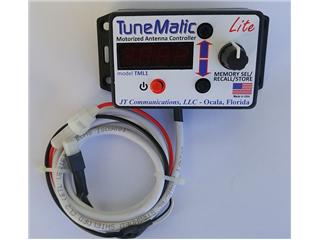

TuneMatic Lite is a self-contained, motorized antenna controller that stores and recalls up to 20 presets, based on user input. Antenna position is moved manually or automatically from memory, with extremely repeatable accuracy .
Features:
- Supports any pulse counting antenna
- Up to 20 non-volatile memories to store and recall
- Memories accessed with a single rotary encoder/switch
- Adjustable current limit set with internal DIP switches (current limit setting range: 200-1900 mA, displayed guess-free on power-up
- 2 speed motor control in manual movement, for easy fine-tuning of antenna; motor control uses dynamic braking for dead-stopping of antenna
- Logic controlled pulse measurement for accuracy; provides accurate pulse counting capability up to 9998 counts
- Large 4 full digit 0.5”H x 1.5”W bright red LED display (LED displays memory, pulse count, and system messages
- Antenna ‘park’ feature, re-calibrates pulse count upon parking antenna
- Antenna polarity reversal selector, in case motor is wired backwards
- Missing pulse detection, stops movement when no pulses are detected on timeout
- Fused, filtered, polarity protected operation from 12v DC power source
- RFI protected antenna control lines
- Combined power and motor cable in single 3’ cord length, allows concealment of connections
- Compact, dashboard-sized enclosure (2.25”h x 4.25”w x 1.5”d) with mounting tabs on flush back
Controls:
- Power on/off electronic pushbutton
- UP/DOWN direction buttons
- Memory knob/push selector– selects memory and stores/tunes memories
Connections:
- Red & Black fused power leads
- 4-wire Motor control cable, pre-wired for TarHeel antennas
