Microsat WX3in1 Plus 2.0

Microsat WX3in1 Plus 2.0

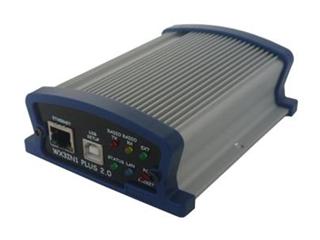

WX3in1 Plus 2.0 - APRS Advanced Digipeater / I-Gate

HRO Discount Price: $159.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
WX3in1 Plus 2.0 Description     Hide

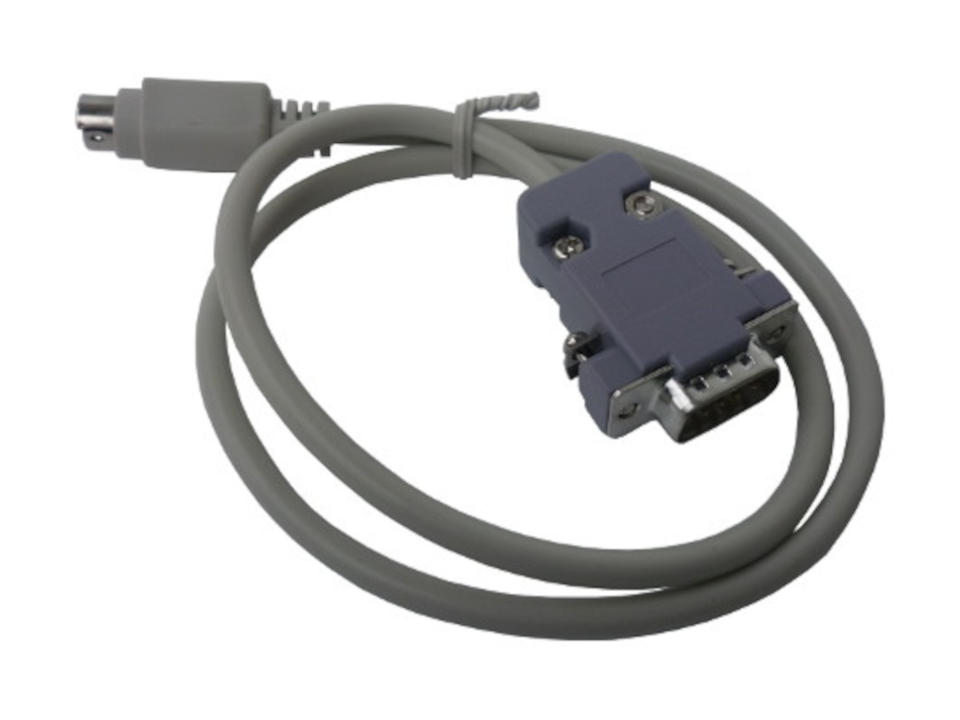

** Comes Supplied With 1 CAB24B Interface Cable **

What's New in WX3in1 Plus 2.0

  • There is no MX614 hardware-decoding modem chip (used in WX3in1 Plus 1.0), packet decoding/encoding is accomplished with DSP algorithm (like in WX3in1 Mini)
  • Texas Instruments TLV320AIC23B high quality 16-bit codec chip is used for audio path analog-digital and digital-analog conversion, device is able to decode packets with input signal level as low as 25mV p-p and as high as 1V p-p without need for signal level regulation.
  • Analog input and output levels are regulated in software, analog potentiometers are no longer necessary.
  • Audio path is matched not only for standard AFSK 1200 APRS baudrate but also for GMSK 9600 APRS baudrate encoding/decoding (the second option will be available in next firmware updates).
  • RS-485 connector is separated from audio connector.
  • Weather station DB-9 connector is replaced by MINIDIN-6pin connector with 2 serial ports like in PLXDigi/PLXTracker (currently one for weather station, the other for GPS).
  • There is a direct DS18B20 thermometer connector on the rear panel for temperature measurement without need to use WXTelemetry.
  • Device is operated using more advanced microcontroler with 512KB flash and 64KB ram, which gives much more possibility for future firmware updates.


Packet Decoding Efficiency Results

  • Device is able to decode around 981 packets from Track 2 of WA8LMF TNC Test CD v1.1 (preemphasized audio).
  • Device is able to decode around 960 packets from Track 1 of WA8LMF TNC Test CD v1.1 (not preeamphasized audio).


APRS Client

WX3in1 Plus 2.0 allows you to generate APRS data packets with information field defined by user and send them in a specified interval. In this way, it is possible to send beacons, objects, weather and telemetry data.


APRS Digipeater

The main purpose of the device is receiving and sending APRS data packets via amateur radio transceiver. WX3in1 Plus 2.0 is capable of receiving an APRS packet, decoding the sender, recipent, path and information field. Then actions are performed in accordance with the options configured by user:

  • Packet is digipeated via the APRS network.
  • Packet is sent to the APRS-IS server.
  • Packet is ignored if it was corrupted.


Device Firmware Implements the Following Mechanisms:


  • Checksum Verification - packets with errors are ignored.
  • Anti-flood - packets repeated in a short time interval are not forwarded.
  • Path checking - a decision whether to digipeat a packet or not is made using a filter stored in configuration data of the device. User defines whether to forward WIDE1-1, WIDEn-N, SPn-N, or local path packets and the maximum value of N (so called New-N paradigm).
  • Callsign filter - a simple callsign filter allows you to add stations to black list (these stations will be ignored) or white list (only these stations will be digipeated).


RF -> APRS-IS Forwarding (I-Gate)

WX3in1 Plus 2.0 allows you to connect to APRS-IS server network. After logging to selected server, it is possible to gate data received from the APRS radio network. All packets with correct format and checksum are forwarded to APRS-IS.


APRS-IS -> RF Forwarding

The device allows you to receive packets from APRS-IS server. Then a decision is made whether to gate a packet to RF or not. It is possible to forward different types of packets based on a filter defined in device configuration. APRS message packets can be forwarded to stations which were heard on RF within limited number of digi-hops (local RF), and they are repeated up to 3 times in case of no ACK packet received from message recipient.


Weather Station Support

WX3in1 Plus 2.0 allows you to receive weather information from weather stations via the RS-232 cable. Data is then encoded into the APRS packet and may be sent to APRS network at specified intervals. Additionally WX3in1 Plus 2.0 allows you to send weather data to APRS-IS server.
Supported weather stations:

  • LaCrosse/Technoline WS-2300
  • LaCrosse/Technoline WS-2350
  • Peet Bros Ultimeter 100
  • Peet Bros Ultimeter 800
  • Peet Bros Ultimeter 2000
  • Peet Bros Ultimeter 2100
  • Davis Vantage Pro (with RS232 datalogger)
  • Davis Vantage Pro2 (with RS232 datalogger)
  • Davis Vantage Pro Plus (with RS232 datalogger)
  • Davis Vantage Pro2 Plus (with RS232 datalogger)


Weather Underground Service Support

Weather Underground is one of the biggest weather services available on the web. It allows you to create an account for your weather station and send weather reports which are stored in their database. Data is then available for view in form of graphs, tables or a simple web page applet showing current conditions in your location. Everyone can send his weather data using a simple internet protocol.
In WX3in1 Plus 2.0 you can configure your Weather Underground account name, password and send weather data in preconfigured time intervals. You can also send your weather data in “rapid fire” mode every 5 seconds and see your weather changes realtime using their web page applet.


Telemetry Reports

Device allows you to send telemetry reports to APRS/APRS-IS network. Possible telemetry channels are:

  • received APRS packets in 1 hour or 10 minutes window
  • digipeated APRS packets in 1 hour or 10 minutes window
  • packet decoding efficiency in 1 hour window or in the whole range from device power-up




WXTelemetry Module Support (Analog Channels)

You can get more telemetry report options when using external WXTelemetry module. With WXTelemetry module you can measure and send following values:

  • two current measurement inputs
  • two voltage measurement inputs
  • DS18B20 digital thermometer input


WXBits Telemetry Module Support (Digital Inputs/Outputs)

You can use an additional WXBits module for reporting of digital input channels and administration of output channels. WXBits is a module which includes:

  • 4 optocoupler digital inputs
  • 4 mosfet transistor open-collector outputs

States of both inputs and outputs can be reported in APRS telemetry reports and outputs can also be controlled with WX3in1 telnet interface.


RTC Clock and NTP Time Synchronization Support

With WX3in1 Plus 2.0 you always have the current date and time thanks to NTP support. Device connects to a defined NTP server every few minutes and checks for the current time. Local passage of time is handled by on-board RTC clock with a battery.


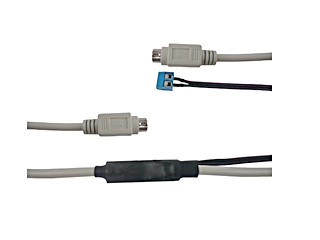

Direct DS18B20 Thermometer Input

On the rear panel of WX3in1 Plus 2.0 you can find a 1-wire connector for DS18B20 thermometer. Measured temperature can then be sent using beacons or as one of telemetry channels.


GPS Support

One of WX3in1 Plus 2.0 RS-232 serial ports can be used for reception of GPS data in NMEA format. You can use one of our GPS receivers or any other GPS receiver providing data in NMEA format. Received positioning data can then be sent via beacon allowing to track a moving unit on the map.


Firmware and Configuration Updates

In WX3in1 Plus 2.0 you can do all firmware and configuration updates over an USB cable connection from your PC using a simple Configurator application. If your device is located in a remote location, you can update firmware and configuration over TFTP protocol.


Remote WWW Access

With WX3in1 Plus 2.0 device it is possible to configure and view device statistics remotely via web browser.
Below you can see 2 of 13 available configuration pages (as in firmware version v1.41).




Remote Telnet Access

You can connect to your WX3in1 Plus 2.0 device with a telnet client. Telnet connection allows you to check all device operation messages, read device statistics, send some test packets useful during installation, control digital outputs of WXBits module, and much more.




Device Back Panel

Below you can see device back panel with power, RS-485, DS18B20, serial ports and radio connectors.

Device Printed Circuit Board

Below you can see a photo of a device PCB. It is a compact design mounted on a high-quality 2-layer PCB manufactured in Poland. Every unit is mounted and tested by the engineer himself.

    Manufacturer's Website
    Product Website
