YAESU FTM-300DR

YAESU FTM-300DR

Dual Band 144/430 MHz C4FM Digital/Analog FM Mobile Transceiver with BT, GPS, & APRS

Regular Price: $459.95

Additional Savings

-$60.00  Yaesu Mfr Coupon (Exp:06/30/24)

HRO Discount Price: $399.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
FTM-300DR Description     Hide

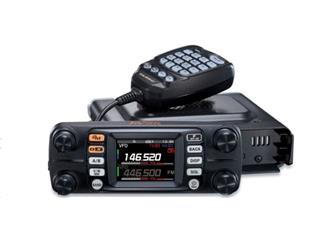

Dual Band Analog Plus C4FM Mobile Transceiver

A compact, high performance mobile radio that provides both analog and C4FM digital FM operation with plenty of power to help with distant simplex contacts or far away repeaters. It's compact size allows it to be mounted or used in most any place.

QVGA Full-Color, High Resolution TFT Display.
With the 2-inch TFT color screen you can see the display in most all lighting conditions. Strong sun won't wash-out this screen. Frequency, power, and operation bands stand are easy to read.

Visual Band Scope Function
Now you can monitor up to 63 channels (21 channels in memory channel mode), centered around the current VFO in real time. A great visual feature to find activity in your area.

Efficient Cooling
The FTM-300DR is built with a very, heavy-duty heat sink. Yaeusu's exclusive FACC (Funnel Air-Convection Conductor - Wind Tunnel) heat sink design means extended operations at high power are possible with this advanced cooling system.

50 Watts Of Reliable Power
At 50 Watts you get stable and reliable power. Multiple power level settings of 5W, 25W, or 50W allows you to set the right RF power for your needs.

Real Dual Band Operation (V+V, U+U, V+U, U+V) Two independent receivers means you get true dual band radio operation. Unlike previous models, The FTM-300DR supports simultaneous C4FM digital monitoring for both the A and B band. A very flexible convenience.

Memory Channel and Auto Grouping
One of the more advanced features of the FTM-300dr is the Memory Channel Band Auto Grouping (MBAG). This feature allows memory channel to automatically be categorized in each band, and memory channels can be easily and quickly recalled by four (4) Band Groups

  • Air band (M-AIR)
  • VHF(M-VHF)
  • UHF(M-UHF)
  • 174-400MHz/ 480-999.99MHz (M-GEN)

Crisp, Clear Audio
With three (3) Watts of audio power you will get crisp and clear audio. And Yaesu went a step further and specifically tuned the audio path for quality audio. For external audio there are two, individual speaker jacks provided. VFO A is on one and VFO B is on another. You can also mix them both into a single external speaker is so desired.

Built-in Bluetooth
No longer an accessories. Bluetooth is now built it . You can enjoy hands-free operation with our optional SSM-BT10 or most commercially available Bluetooth headsets. The SSM-BT10 is equipped with a PTT button and also supports VOX. Use the new USB charger cable - SCU-41 with the controller of the FTM-300DR, the SSM-BT10 can be easily charged. You get 20 hours of operation of the SSM-BT10 (approx.) on single charge.

WiRES-X
Both WiRES-X Portable Digital Node function and Fixed Node function with the HRI-200 are supported. Since simultaneous C4FM monitoring on both VFO A and VFO B is possible, users can enjoy both WiRES-X communications on one channel while monitoring another local channel at the same time. A real innovation.

DG-ID, GM, and More!
The FTM-300DR includes DG-ID(Digital ID) Group Monitor. Positional awareness from the built-in 66ch High Sensitivity GPS receiver enabling Real Time Navigation. A backtrack feature. A GPS terminal so you can plug in your own external GPS receiver. 1200/ 9600 APRS data modem for APRS mode. Voice Recording of both RX and TX audio. The ability to save and load data including configuration and memory channel information to a micro SD card. And a snapshot function using the optional MH-85A11U camera microphone.


Additional Features:

  • *Funnel Air-Convection Conductor gathers cool air through wide-open front and side air-intakes and concentrates the air-flow to the critical final amplifier area drawn by a rear cooling fan
  • AMS (Automatic Mode Select) which automatically selects the communication mode by detecting the communication mode of the receiving signal
  • Multi-Color Status Indicator showing the operation mode (C4FM/ FM - TX/ RX)
  • Digital Group ID (DG-ID) function (Just by setting matching two digit DG-ID "00" - "99", designated link and communication with multiple transceivers can be configured.)
  • Digital Group Monitor which automatically checks if the members having the matching DG-ID are within the communication range and display their call-sign if they are in the range
  • Real-time Navigation displays the position data, distance and direction of other stations in real-time
  • Backtrack Feature (navigation function to a pre-registered point)
  • Voice Recording Function for received and transmitting voice and audio data
  • Micro SD Card Slot (up to 32GB)
  • Large 1104 channel memory capacity
  • DTMF Encode/ Memory Store
  • Time-out Timer (TOT) **May not be compatible with all Bluetooth products.


Yaesu Supplied Accessories:

  • DTMF Microphone SSM-85D
  • Radio unit Mounting Bracket
  • Control Cable for the operation with mounting front panel
  • Control Cable 10ft (3m) for the operation with demounting front panel
  • USB Cable
  • DC Power Cable
  • Operating Manual


Specifications:

Frequency Ranges:

  • A/B Band RX: 108 - 137MHz (Air Band)
  • RX 137 - 174MHz (144MHz HAM / VHF Band)
  • RX 174 - 400MHz (GEN)
  • RX 400 - 480MHz (430MHz HAM / UHF Band)
  • RX 480 - 999.99MHz (GEN, USA Cellular Blocked)
  • TX: 144 - 148MHz, 430 - 450MHzCircuit
  • Type: Double-Conversion Super heterodyne

Radio Modulation Type: F1D, F2D, F3E : Variable Reactance Modulation

F7W : 4FSK (C4FM)

RF Power Settings: 50 W/25 W/ 5 W

Memory: 1104

Case Size(W x H x D): Radio Unit 5.47"x 1.66"x 5.2" (139 x 42 x 132 mm)w/o Fan

Controller: 5.47"x 2.09"x 0.7" (139 x 53 x 18 mm) w/o Knob

Weight: 2.43lbs (1.1kg) with Radio Unit, Controller, Control Cable

    Manufacturer's Website
    Product Website

FTM-300DR Accessories and Related Items
MARS MOD FTM-300DR

MARS MOD FTM-300DR

MARS MODIFICATION OF FTM-300DR

$44.95
INCLUDE
FP-1023A

FP-1023A

Switching Regulator Power Supply - 13.8 Volts DC - 23 Amps - 110 / 220 Volts AC Input

$149.95
INCLUDE
FP-1030A

FP-1030A

Linear DC Power Supply - 13.8 Volts - 30 Amps - 120 Volts AC Only

$229.95
INCLUDE
MLS-100

MLS-100

Mobile Speaker with Mounting Bracket

$46.95
INCLUDE
T90217152

T90217152

DC Power Cable for FT-2900R / FT-1900R / FT-2800M / FT-90R

$12.95
INCLUDE
MH-48A6JA

MH-48A6JA

DTMF Hand Microphone for FT-2900/7900R/8900 FTM-350/400DR/400XDR

$59.95
INCLUDE
MH-42C6J

MH-42C6J

Hand Microphone for FTM-350 / FTM-400DR

$49.95
INCLUDE
FVS-2

FVS-2

Voice Synthesizer Unit for FTM-400XDR / FTM-350, DR-2X & DR-1X

$34.95
INCLUDE
CT-132

CT-132

Control-Head Separation Cable for FTM-500DR - 20 Feet (6m) Long

$44.95
INCLUDE
MMB-98

MMB-98

Vacuum Cup Face Panel Mount For FTM-400DR & FTM-350 Series

$19.95
INCLUDE
MH-85A11U

MH-85A11U

Camera/Microphone for FT-5DR / FT-3DR / FT-1DR / FTM-400DR

$139.95
INCLUDE
CT-166

CT-166

Cloning Cable for FTM-400DR

$44.95
INCLUDE
CT-163

CT-163

Data Cable - 10 Pin Mini DIN to 6 Pin Mini Din + DSUB9 - for FTM-400DR

$54.95
INCLUDE
CT-164

CT-164

Data Cable - 10 Pin Mini DIN to 6 Pin Mini Din - for FTM-400DR

$29.95
INCLUDE
CT-167

CT-167

Data Cable - 10 Pin Mini DIN to Bare Wire - for FTM-400DR

$29.95
INCLUDE
SCU-23

SCU-23

Camera / Microphone Extension Cable for FTM400DR & MH-85A11UMic

$54.95
INCLUDE
HRI-200

HRI-200

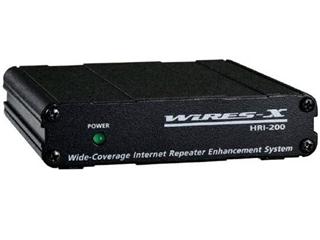

WiRES-X Internet Linking Kit - Analog & C4FM

$124.95
INCLUDE
T9101606

T9101606

Firmware Update/Computer Cable USB A TO MINI USB

$9.95
INCLUDE
SanDisk Ultra 32GB

SanDisk Ultra 32GB

SanDisk Ultra Class 10 32GB microSD micro SDHC SD UHS-I U1 TF Flash Memory Card

$16.95
INCLUDE
SSM-BT10

SSM-BT10

Bluetooth® Headset For FT3DR AND FT-5DR

$24.95
INCLUDE
SSM-85D

SSM-85D

DTMF Microphone

$64.95
INCLUDE
SCU-41

SCU-41

Charging Cable for Bluetooth® Headset SSM-BT10

$21.95
INCLUDE
SCU-47

SCU-47

Control Cable 20ft (6m) (Radio/Controller Connection Cable)

$44.95
INCLUDE
YPS-M300-U

YPS-M300-U

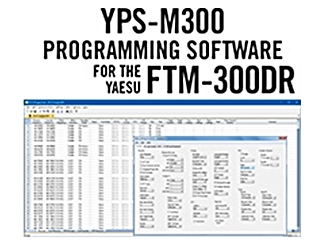

Programming Software Only for the Yaesu FTM-300DR

$24.95
INCLUDE
NIFTY-FTM300DR Desk Stand

NIFTY-FTM300DR Desk Stand

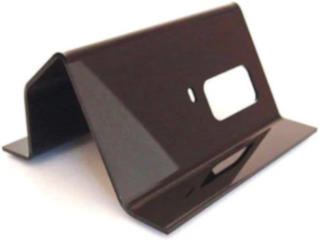

Heavy Duty Yaesu FTM-300 Desk Stand
