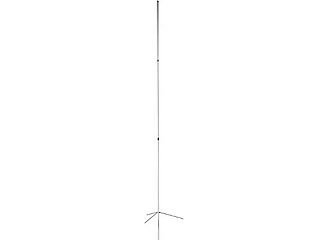

The Diamond X500HNA was designed for strength and performance and is pre-tuned to achieve maximum gain in both the 2m and 70cm amateur bands.

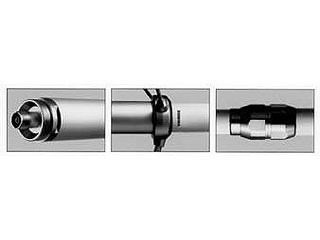

It has a heavy duty fiberglass radome with overlapping outer shells for added strength. It comes with stainless steel mounting hardware and radials and strong-waterproof joint couplings. It is an ideal high quality antenna for repeater applications.
(This model is a heavy duty repeater version of the X-510NA)
- Frequency: 2M/70CM (144-148 and 440-450 MHz)
- Gain: 8.3/11.7 dB
- Power: 200 watts
- Connector: N
- Height: 17.8 feet
- Weight: 7 lbs.
- Wind Rating: 90 MPH
