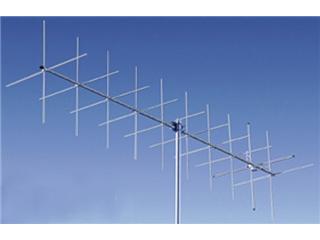

Ten vertically polarized and ten horizontally polarized elements provide 11.1 dBi gain covering 144-148 MHz. The horizontal elements handle your CW and SSB needs, while the vertical elements cover FM.
Two coaxial cables are required for independent horizontal/vertical operation. Or use the optional Cushcraft PD-2 Power Divider to split power between the two sets of elements. the gain in either plane will be reduced by 3 dB, but you will not suffer the 20+ dB of loss if the incoming station is using the opposite polarity from yours (H/V or V/H).
