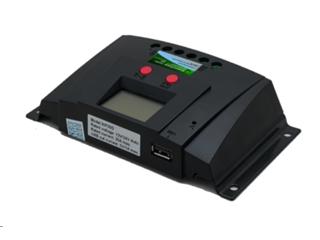

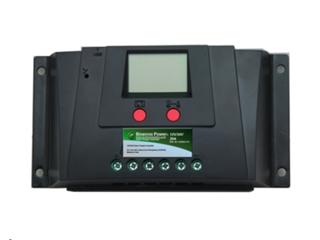

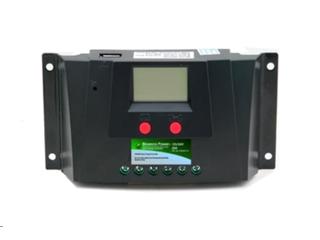

Bioenno Power 12/24 Volt, 20 Amp Solar Charge Controller (Model SC-122420JUD) is a versatile controller for use in solar systems with an integrated
LCD display, that is designed to charge
LiFePO4 (Lithium Iron Phosphate) batteries! This solar controller accepts either 12-Volt or 24-Volt input from solar panels and can handle up to 20 Amps. Featuring our proprietary CC/CV (Constant Current/Constant Voltage) circuitry, the solar controller provides a regulated voltage output for charging 12-Volt or 24-Volt LiFePO4 batteries. The solar controller also provides a regulated 12-Volt or 24-Volt output for electrical loads (depending on whether a 12V or 24V battery is used). Solar controllers are required for all solar systems in order to maintain a regulated output voltage to charge batteries and for maintaining a regulating output voltage for loads.
Please note that for any solar setup in which you are using a panel in conjunction with a battery and/or a load a solar charge controller is absolutely necessary. DO NOT plug a panel directly into your battery or your load! This controller does not boost voltage from the solar panel, but instead will regulate a high panel voltage from 50 Volts downwards.
User Manual for SC-122420JUD [PDF]
Specifications
System Voltage: 12 Volts or 24 Volts (automatic detection)
Allowable Range for Input Voltage (from solar panels): 12 Volts to 50 Volts (when using 12-Volt or 24-Volt LiFePO4 Batteries)
Output Voltage to LiFePO4 Batteries12 Volts or 24 Volts
Output Voltage to Loads: 12V or 24V (depending on battery configuration)
Rated Charge Current (Current Delivered to Battery): Up to 20 Amps
Rated Load Current: Up to 20 Amps
Batteries Compatible w/ Controller: Lithium Iron Phosphate (LiFePO4)
Operating Temperature Range of the Controller: -31 F to 131 F (-30 C to 50 C)
Compatible 12-Volt Lithium Iron Phosphate Batteries
Nominal Voltage: 12.8 Volts
Float Voltage: 14.4 Volts
Low Voltage Disconnect (LVD): 10.4 Volts
Low Voltage Recovery (LVR): 11.16 Volts
Boost Voltage:
“b01: 14.4V”
“b02: 14.2V”
“b03: 14.6V”
High Voltage Disconnect (HVD): 15.5 Volts
Compatible 24-Volt Lithium Iron Phosphate Batteries
Nominal Voltage: 25.6 Volts
Float Voltage: 28.8 Volts
Low Voltage Disconnect (LVD): 20.8 Volts
Low Voltage Recovery (LVR): 23.2 Volts
Boost Voltage:
“b01: 28.8V”
“b02: 28.4V”
“b03: 29.2V”
High Voltage Disconnect (HVD): 31.0 Volts
No Load Loss: <13 mA
USB Port: 5VDC/1A
Charging Mode: CC/CV (constant current / constant voltage)
Dimensions: 6.5 in. x 3.46 in. x 1.5 in.(166 mm x 88 mm x 38 mm)
Weight: 0.59 lbs. (0.27 kg)
