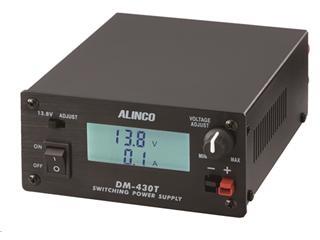

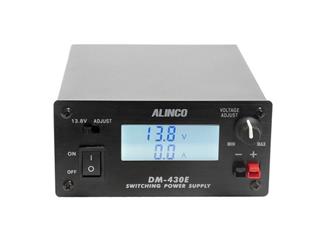

ALINCO DM-430E
ALINCO-DM-430E-Image-1 ALINCO-DM-430E-Image-2

ALINCO DM-430E

Switching Power Supply 5-15 VDC 230V 30A Peak Anderson Power Poles

Special Order Item!*

HRO Discount Price: $159.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

*This item is ordered directly from the factory. In some cases it may be drop shipped directly to you.

For current inventory status please contact your local Ham Radio Outlet and a salesperson will assist you.

DM-430E Description     Hide

Input voltage 220-240VAC

Ultra-compact, lightweight and high-powered switching power supply with Power Pole connectors!

The DM-430 features include a large illuminated digital Volt/Amp meter, rear panel binding posts/front panel Anderson Power Poles (30A peak), voltage adjust (5-15V) or fixed at 13.8V, ripple less than 80mVp-p and protection for short-circuit, over temperature, and current limiting!

FEATURES:

  • Voltage Control: The output voltage is continuously adjustable from 5 to 15 Volt DC, or fixed at rated 13.8V.
  • Forced Air Cooling: Designed with reliability in mind, a durable cooling fan keeps DM-430 running continuously under heavy loads.
  • Large Binding Posts: The main output terminals are large enough to provide an e..cient power transfer to your equipment.
  • Volt & Amp Meter Auxiliary Output: A highly visible, accurate digital Volt / Amp meter allows real-time monitoring of the output current.
  • Auxiliary Output Terminals (30A max.): Added front panel Anderson Power Pole.. terminals provides versatility and quick connections. The output voltage is continuously adjustable from 5 to 15 Volt DC, or fixed at rated 13.8V.

SPECIFICATIONS:

  • Input Voltage: 230VAC (DM-430T)
  • Output Voltage: 5~15V DC
  • Output Current: 30A (max)
  • Output Voltage Regulation: Less than 2%
  • Ripple Voltage: Less than 80mVp-p at rated load
  • Protection: Short-circuit , Automatic current limiting over 30A Over-temperature
  • Fuse: 8A (DM-430T) / 5A(DM-430E)
  • Dimensions: WxHxD 125(W) x 60(H) x 160(D) mm 4.921(w) x 2.362(H) x 6.299(D) inches
  • Weight: Approx. 1.6kg / 3.53 lb with AC cord
