ZUM Radio ZUMspot-USB v0.5
ZUM Radio-ZUMspot-USB v0.5-Image-1 ZUM Radio-ZUMspot-USB v0.5-Image-2

ZUM Radio ZUMspot-USB v0.5

ZUMspot USB Advanced Radio Module Board Digital Hotspot

Regular Price: $119.95

Additional Savings

-$10.00  HRO Introductory Special Offer! (Exp:03/31/19)

HRO Discount Price: $109.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
ZUMspot-USB v0.5 Description     Hide

Click Here To Download "How To Setup The ZUMspot USB On Pi-Star Instruction Guide"


Click Here To Download "How To Setup The ZUMspot USB With BlueDV For Windows Instruction Guide"

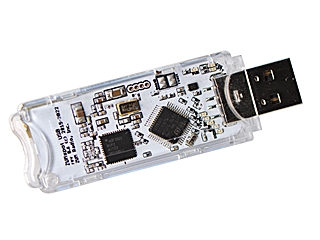

The ZUMspot USB is an Advanced Radio Module Board.

Connected to a Windows/Mac/Linux computer and MMDVM/BlueDV software make a small and efficient multi-mode digital hotspot.

ZUMspot USB Features:

  • High performance 32-bit ARM processor
  • ZUMspot Board Fully Assembled And Tested
  • Supports DMR, P-25, D-Star, System Fusion, NXDN and POCSAG
  • Onboard LEDs to show status (Tx, Rx, PTT, Mode)
  • Up to 10mW RF power
  • SMA antenna connector, UHF antenna included
  • Connects via USB to computers such as Windows, Mac, Linux
  • Supported by MMDVM and BlueDV software
  • The firmware is pre-loaded and is easily upgraded via software.
  • 1 Year Warranty
  • Open source firmware (MMDVM) and board design


The ZUMspot USB Package Includes:

  • ZUMspot USB UHF Board
  • UHF Antenna


** Very Important:

Drivers are included in Linux, OSX and Windows 10. Drivers for Windows 7 and older are not built into the operating system.


Here's info on how to install the drivers:

https://wiki.stm32duino.com/index.php?title=Windows_driver_installation


The drivers can be downloaded from Github:

https://github.com/rogerclarkmelbourne/Arduino_STM32/tree/master/drivers/win
