Davis RF RG213/U-1000 991071

Davis RF RG213/U-1000 991071

RG213/U Coax Cable - 1000ft

Special Order Item!*

HRO Discount Price: $1,139.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

*This item is ordered directly from the factory. In some cases it may be drop shipped directly to you.

For current inventory status please contact your local Ham Radio Outlet and a salesperson will assist you.

RG213/U-1000 991071 Description     Hide

The Coleman Cable Signal 991071 RG213/U MIL-type coaxial cable offers 97 percent braided sheild coverage. This 1/4 inch 50 Ohm coax cable has a stranded center conductor The RG213/U transmission line also has a foam polyethylene dielectric.

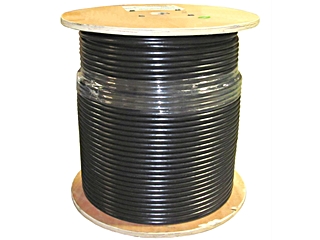

This Coleman RG213 coaxial cable is available in a bulk 1000 foot spool.

Technical Specs

  • Dielectric Insulation: FEP
  • Manufacturer: Southwire Company, LLC
  • Shield %: 96% braid
  • Nominal Core O.D.: 0.285
  • Qty/ Uom: 1000 Foot
  • Sold By: 1000'
  • Nominal O.D.: 0.405 in
  • Loss @ 400 MHz: 4.7 dB
  • Center Conductor Material: Copper
  • VOP: 66 %
  • Cable Type: RG-213/U
  • Nominal Capacitance (pF/ft): 30.8
  • Loss @ 1000 MHz: 8.4 dB
  • Other Spec: Mil Spec MIL-C-17G
  • Loss @ 900 MHz: 8 dB
  • Center Conductor Construction: Stranded
  • Loss @ 50 MHz: 1.6 dB
  • Loss @ 100 MHz: 2 dB
  • Center Conductor Diameter: 0.089 in
    Manufacturer's Website
