West Mountain Epic-H PWRgate 58404-1795
West Mountain-Epic-H PWRgate 58404-1795-Image-1 West Mountain-Epic-H PWRgate 58404-1795-Image-2

West Mountain Epic-H PWRgate 58404-1795

Horizontal Version Of The Epic PWRgate

HRO Discount Price: $189.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Epic-H PWRgate 58404-1795 Description     Hide

The Epic-H PWRgate is West Mountain Radio's 3rd generation power gate product with MPPT Charging Technology. It uses advanced technology to achieve a very low power loss and has maximum flexibility to charge modern batteries.

FEATURES:

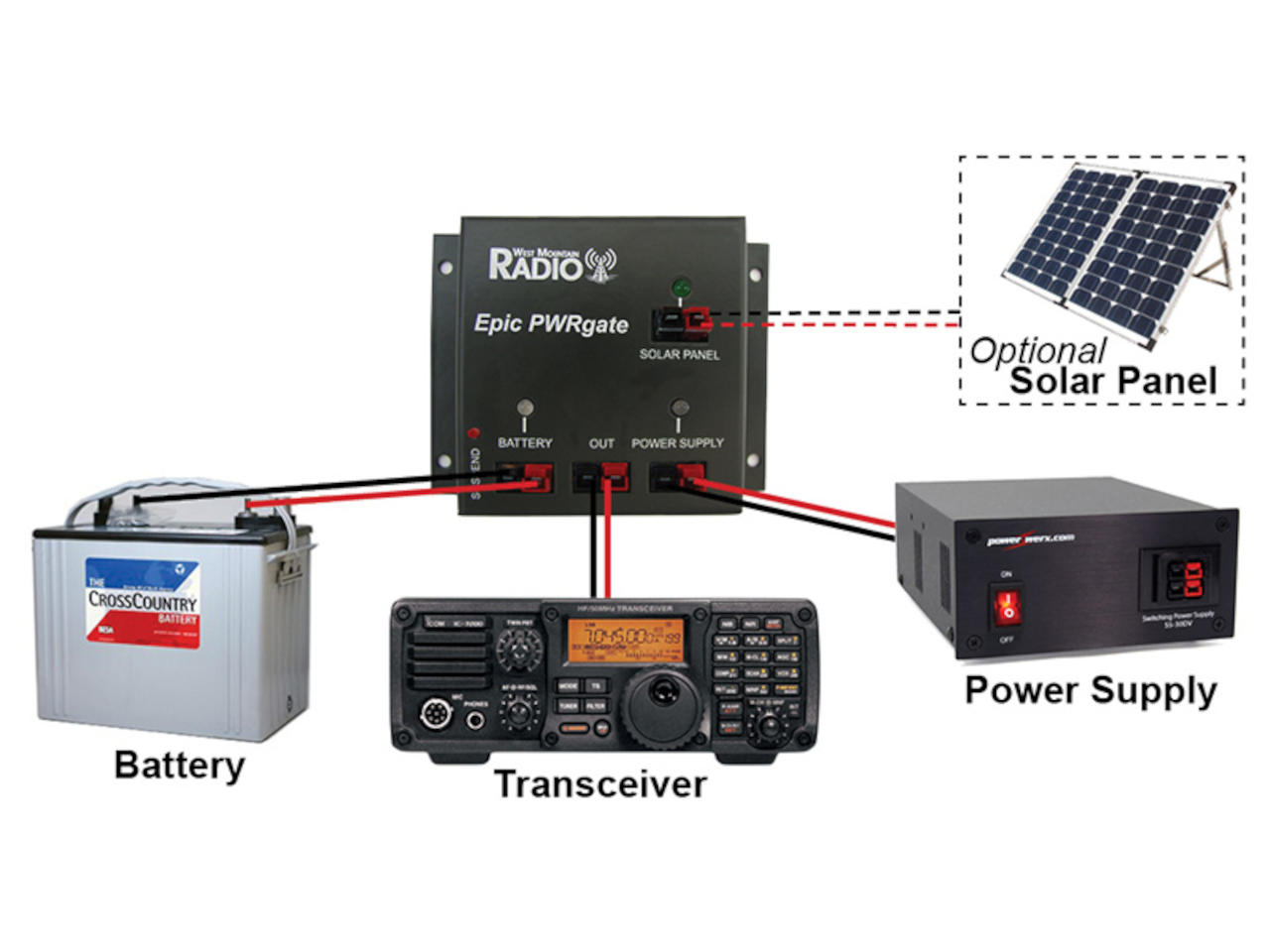

  • Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Low loss PWRgate provides forward voltage drop of only 0.05 volts.
  • USB port access to monitor system or to change charge parameters.
  • Program for specific battery types.
  • Untilizes MPPT Smart Charging Technology for either Lead Acid or Li-Ion battery charging up to 10 Amps.
  • Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
  • Can be programmed for vehicle use to suspend charging when the alternator is off.
  • Complete LED status indicators.
  • Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
  • Optional temperature probe to control charging based on battery temperature.
  • Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole connectors.
  • Includes: Epic PWRgate Unit, USB-micro Cable, (4) Retention Clips, Owners Manual, Reference Card
  • Maximum Voltage: PS 16V / Solar 30V
  • Maximum Current: 40 Amperes
  • Voltage Drop: 0.05VDC
  • Connectors: Anderson Powerpole, 40A
  • Size: 4.5 x 3.375 x 1.25 in
  • Weight: 0.35 lbs
  • Mounting Holes: Four - 0.175 d, #8 hardware
