VHQ HEX Antenna Products VHQ HEX BEAM
VHQ HEX Antenna Products-VHQ HEX BEAM-Image-1 VHQ HEX Antenna Products-VHQ HEX BEAM-Image-2 VHQ HEX Antenna Products-VHQ HEX BEAM-Image-1

VHQ HEX Antenna Products VHQ HEX BEAM

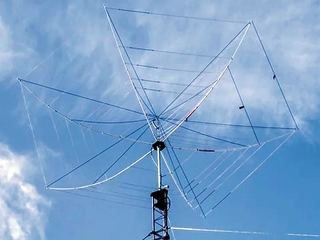

20-6 Meter Heavy Duty Hex Beam - Drop Ship

Special Order Item!*

HRO Discount Price: $1,764.95*


*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

*This item is ordered directly from the factory. In some cases it may be drop shipped directly to you.

For current inventory status please contact your local Ham Radio Outlet and a salesperson will assist you.

VHQ HEX BEAM Description     Hide

Free Shipping To Lower 48 (Contiguous) United States

Here Is The Data:

Chances are you Paid good money to buy a hex beam only to have it bend or break due to mother nature.

VHQ HEX Antennas has solved that problem with a new standard in Hex Beam! (LIFETIME GUARANTEE)

Why VHQ HEX Beam:

Winter or Wind Got You Down!!!

VHQ to the rescue!

The VHQ Premium Hex Beam antennas are Heavy Duty, Designed to withstand anything nature can throw at you, and is the best performing antenna on the market HANDS DOWN!!! VHQ Hex also backs up their Antennas with a LIFETIME GUARANTEE

Why Do I need a VHQ HEX:

Most often, the failure of the hex beam as seen in the pictures on this web site, are caused by High Winds and ice or snow. The Achille’s heel of the hex beam is the center post which takes all the stress from the arms of the hex beam.

Once the center post begins to fail and bend (this is caused by uneven loading of snow and ice which dramatically changes the dynamics of the center post) the Hex beam looses it’s integrity and bends resulting in over tensioning the spreader arms and snapping them.

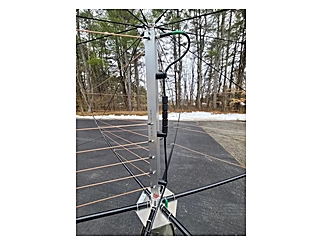

The VHQ HEX BEAM addressed this problem and now offers a Hex beam that will not fail. The VHQ has a Heavy Duty Center post with a solid core attachment that has a breaking strength of 15,000 lbs. and heavy duty billet aluminum attachment hubs That’s why all our machined parts have a LIFETIME GUARANTEE.

How It Works:

The VHQ HEX can be purchased with all the parts you need to assemble a complete Hexbeam. All VHQ HEX parts are made with the finest components available, including stainless steel fittings and 12 gauge wire for longer life and extended bandwidth. Your hexbeam will have Lower SWR and a Stronger Signal using thicker stranded copper wire. All support cord connections are HEAVY DUTY


  • Extraordinary Quality
  • Life Time Guaranty
  • Extra Low SWR
  • Extra Low Loss
  • Improved Bandwidth
  • Maximum GAIN
  • No Maintenance
  • Product Support

Included Components List:

  • 100% Stainless Steel Fasteners Including Wire Guides
  • Stainless Steel Nylock Nuts Throughout
  • Heavy Duty Aircraft Grade Aluminum Thick Wall (.250) Centerpost
  • 15K Breaking Strength, ARC Resistant Solid Fiberglass Isolated Mounting Dowel

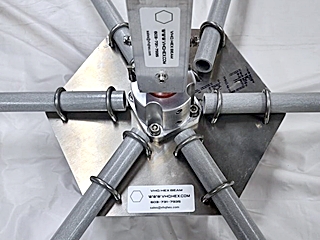

  • Billett Aluminum Heavy Duty CNC Machined Top And Bottom Base Hubs
  • Heavy Duty Dacron Covered Kevlar Cords
  • Heavy Duty Crimp Connectors
  • Thick Marine Grade Heat Shrink With Sealant Throughout
  • 12 Gauge (FLEXWEAVE) Pure Copper Wire
  • Ultra Heavy Duty Large Stainless Steel S Hooks
  • Heavy Duty Stainless Wire Guides On Spreader Arms
  • Amphenol Connector, (Not Chinese)
  • Heavy Duty Billett Aluminum Top Cap With ¼" Stainless Steel Eye Bolt With 1 Inch Opening For Support Cords
  • 5 FAIR-RITE Ferrite Chokes Included - USA MADE
  • 6,10,12,15,17,20 Meter Bands, Also Works On 2 Meters
  • Insulated Coax Standoffs For Eliminating Capacitive Buildup With Center Post
  • Complete Antenna, Nothing Extra To Buy

Hub Adapters Available for 1-1/2" and 1-3/4"

** (Lifetime Guarantee On All Machined Components, 5 Years On Spreader Arms And Elements)
