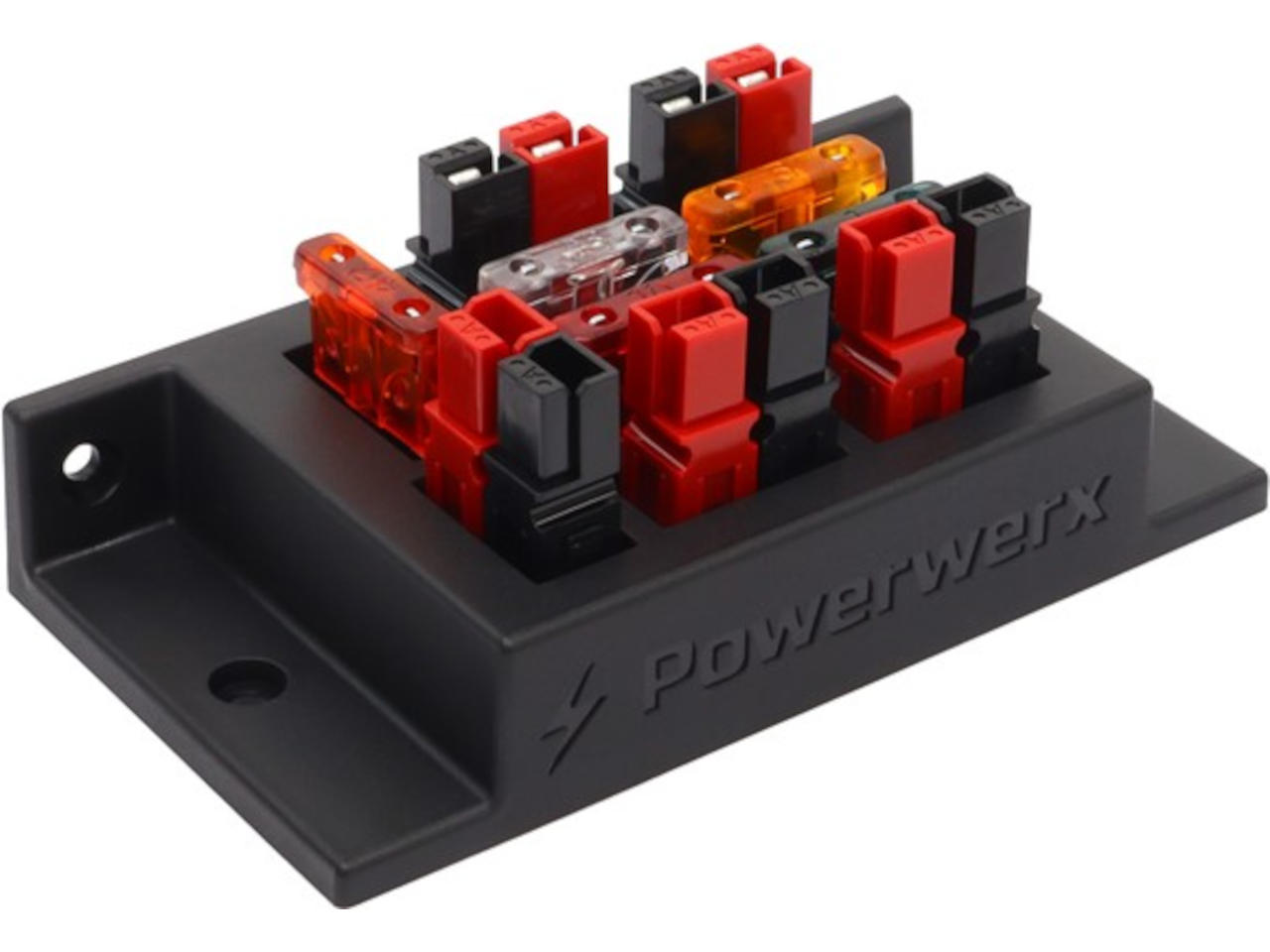

Protect your sensitive equipment and simplify your power management with the easy to use Powerwerx 5-Position Powerpole Fused Distribution Block. Whether you're setting up a ham radio shack, outfitting a mobile rig, or tackling a permanent installation, this fused block makes connecting and protecting multiple devices a breeze.
Backed by Powerwerx's trusted reputation for quality and performance, this distribution block is designed for durability and long-term use in any environment.
Circuit Protection:
Built-in ATO/ATC automotive blade fuses offer easy field replacement, protecting your equipment from overloads and short circuits without complex wiring.
User-Configurable Fuses:
Easily swap or replace automotive blade fuses as required. With fuse ratings from 1 to 40 amps, you can flexibly tailor circuit protection to your specific needs.
Rock-Solid Construction:
Thick copper construction minimizes voltage loss and maximizes durability, outperforming weaker, lower-current alternatives.
Versatile Mounting:
Built-in mounting holes enable secure vertical or horizontal installation, adapting to any space for a clean, professional setup.
Secure Connections:
Optional PCLIP retention clips (sold separately) lock your Powerpole connectors in place, preventing accidental disconnects.
Clean, Plug-and-Play Installation:
Sleek design allows all wires to run in one direction, keeping your setup organized and trouble-free, right out of the box.
Specifications:
- Connections: 5 Anderson Powerpole Connectors
- Fusing: Includes ATO/ATC Automotive blade fuses. Input fuse 40A (x1). Output fuses 25A (x1), 10A (x1), 5A (x1), 1A (x1)
- Compatibility: Mates with all 15, 30 & 45 amp Anderson Powerpole connectors
- Rating: 40A continuous, 32VDC max
- Mountable: Includes mounting screws. Mounting holes for both horizontal and vertical installations.
- Dimensions: 3.7"W x 2.0"D x 1.3"H (94.0mm x 60.0mm x 33.0mm)
- Weight: 0.153 lb (69 g)
