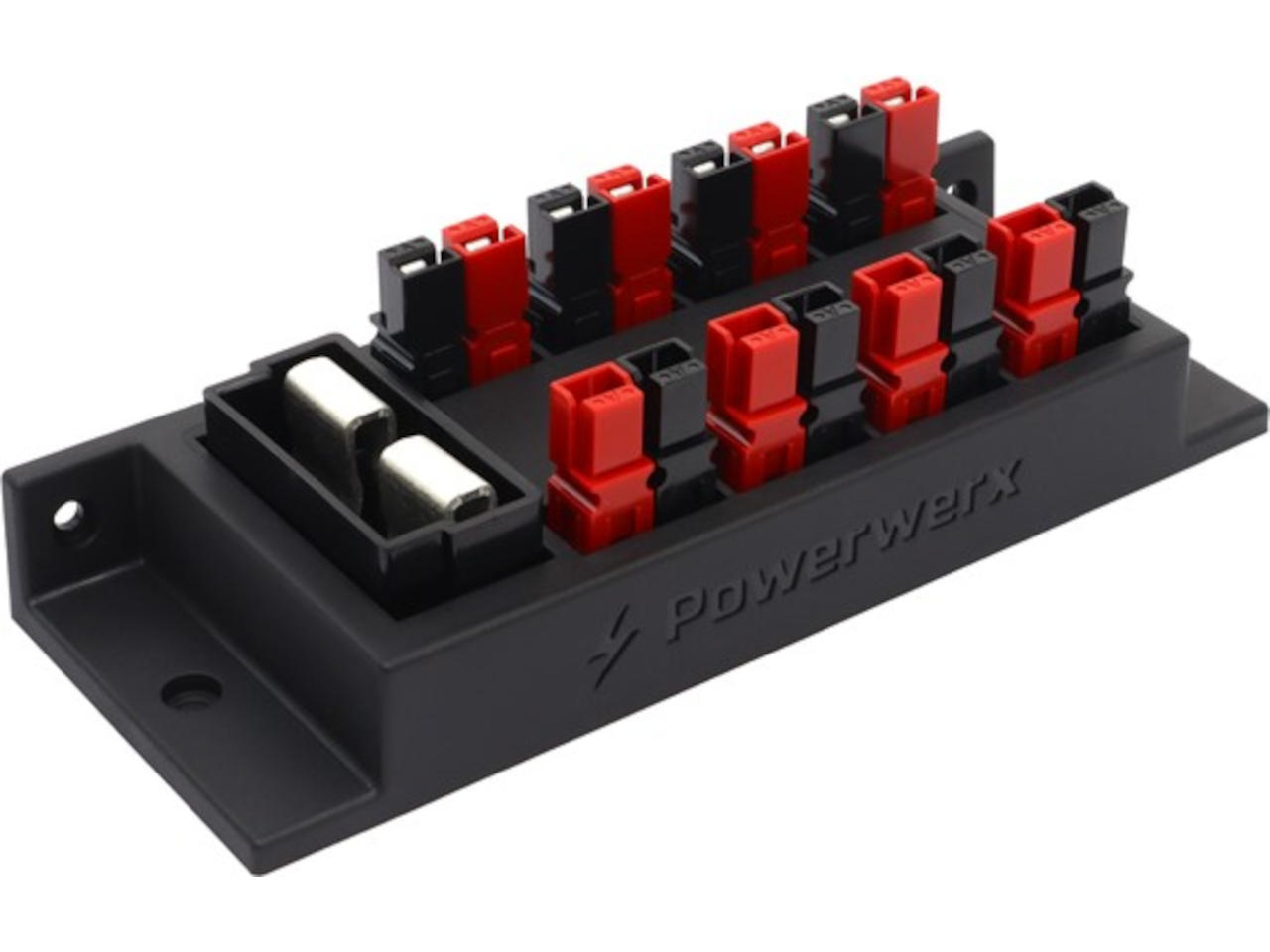

Streamline your power management with the Powerwerx 8-Position Powerpole Distribution Block. Whether you're setting up a ham radio shack, outfitting a mobile rig, or tackling a permanent installation, this block makes connecting multiple devices a breeze.
Backed by Powerwerx's trusted reputation for quality and performance, this distribution block is designed for durability and long-term use in any environment.
Flexible Design:
One dedicated input (Anderson SB50 compatible) and eight output positions (Powerpole compatible) let you connect your power source and devices with ease.
Secure Connections:
Optional PCLIP retention clips (sold separately) lock your Powerpole connectors in place, preventing accidental disconnects.
Rock-Solid Construction:
Thick copper ensures minimal voltage loss and maximum durability, outperforming flimsy, lower current alternatives.
Versatile Mounting:
Built-in mounting holes allow secure installation vertically or horizontally. Adapt it to any space for a clean, professional look.
Plug-and-Play Simplicity:
Streamline your wiring with a tidy, efficient solution that’s ready to go out of the box.
Clean Installations:
Simple design allows all wires to run in a single direction for cleaner and trouble free installation.
Specifications:
- Connections: 1 Anderson SB50 input, 8 Anderson Powerpole outputs
- Compatibility: Input mates with Anderson SB50 series (any color, up to 6 AWG). Outputs mate with all 15, 30 & 45 amp Anderson Powerpole connectors (up to 10 AWG).
- Rating: 60A continuous, 58VDC max
- Mountable: Includes mounting screws. Mounting holes for both horizontal and vertical installations.
- Dimensions: 5.3"W x 2.0"D x 1.3"H (134.0mm x 51.0mm x 33.0mm)
- Weight: 0.222 lb (101 g)
