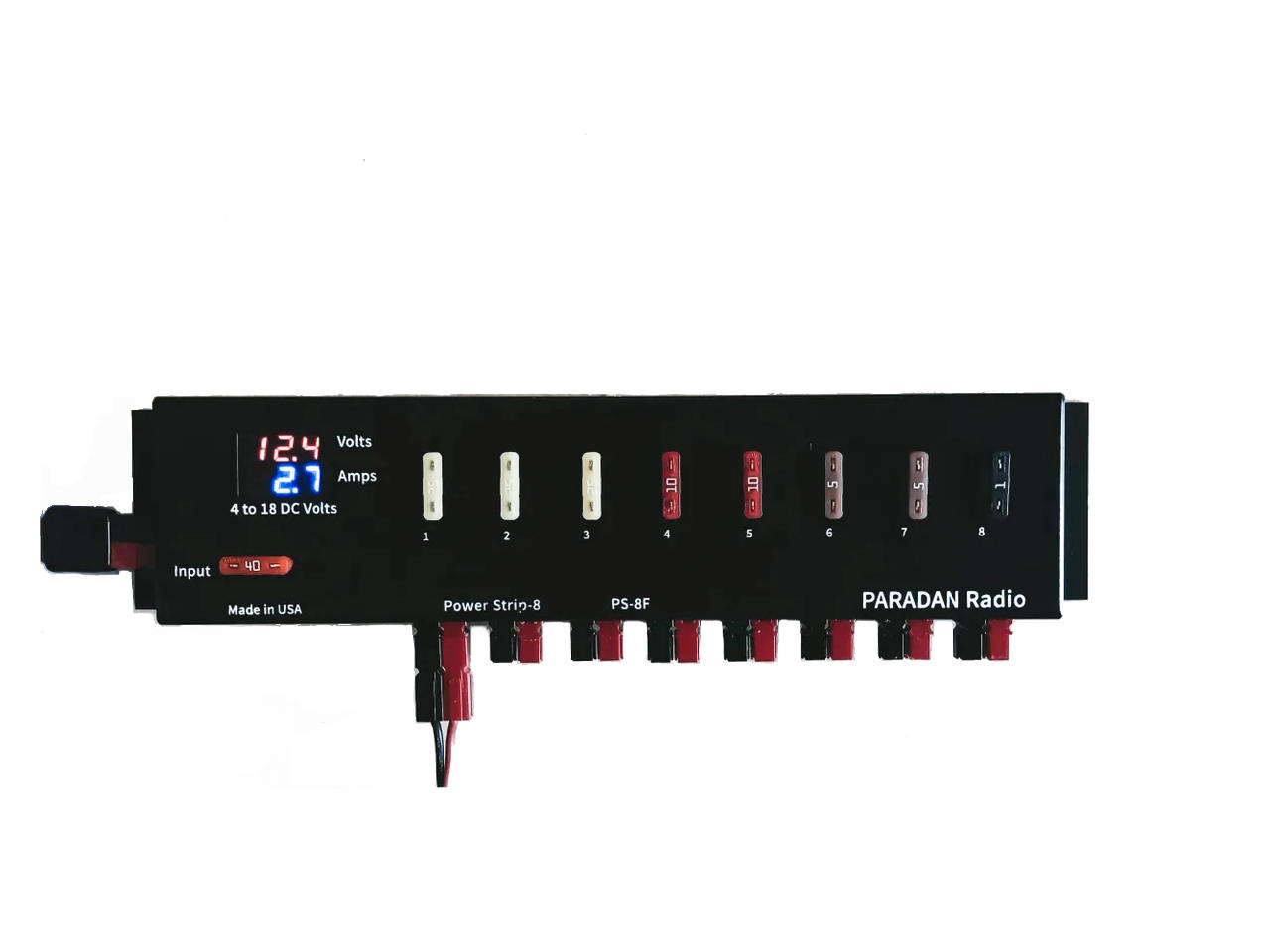

Neaten up your Station by powering all your 12-volt equipment with this 40-Ampere Metered Distribution Panel.
The Horizontal Design permits easy fan out from the eight fused Anderson Powerpole outputs.
A Bright 3-Digit 7-Segment LEDs accurately displays the DC Voltage in RED and the total Current in BLUE.
If any fuse is blown, a red LED will illuminate the fuse.
The PS-8F comes with a 40 amp input fuse, three 25 amp, two 10 amp, two 5 amp, and one 1 amp fuse.
This DC Power Strip may be re-fused in any manner.
VERY IMPORTANT:
The Current is measured on the positive lead, instead of the usual negative lead, enabling accurate measurements for equipment setups using a common ground. The strip’s chassis is isolated from the negative connection.
It comes with 9 Powerpole pairs.
With this DC Power Strip, you will always know the current drain of each piece of equipment!
Specifications:
- Voltage: Nominal 13.8 volts, Maximum 18 volts
- Current: 40 Amperes total
- Current Sensing Resistor: 3.3 milliohms on positive lead
- Meter: two 7 segment LEDs ; Volts in RED, Amps in BLUE
- Fuses: Automotive blade type: 1 40A, 3 25A, 2 10A, 2 5A, 1 1A. May be changed and replaced
- Connectors: 40 Ampere Anderson Powerpoles*. RED is Plus, BLACK is Negative
- Case: Black painted Aluminum with white lettering
- PC Card: FR-4, Double-sided, Triple-thickness copper clad
- Dimensions: 11.5 x 2.4 x 1.0, Power poles and fuses extend 0.5 inches
- Mounting Holes for #8 screws: 10.5 x 1.8 in. square
- Weight: 1 lb.
- Made in USA
