The Timewave ANC-5 is an RF Device that Eliminates or Reduces the following:
- Power Line Noise
- Computer Noise
- TV-Generated Interference
- Other Types of Electrical Noise
The Timewave ANC-5 unit connects right to the Antenna Connector of the Receiver or Transceiver to Cancel Locally Generated Noise before it gets into the receiver and affects the receiver AGC circuits. Reception of signals well below the noise level of the local interference is possible.
To cancel Locally Generated Interference, the Timewave ANC-5 detects the interfering signal and adjusts its Phase and Magnitude so that it matches the Offending Interference at the receiver input, but is 180 degrees out of phase, effectively cancelling the interference. This scheme is particularly effective at reducing local power line noise or other locally generated noise types.

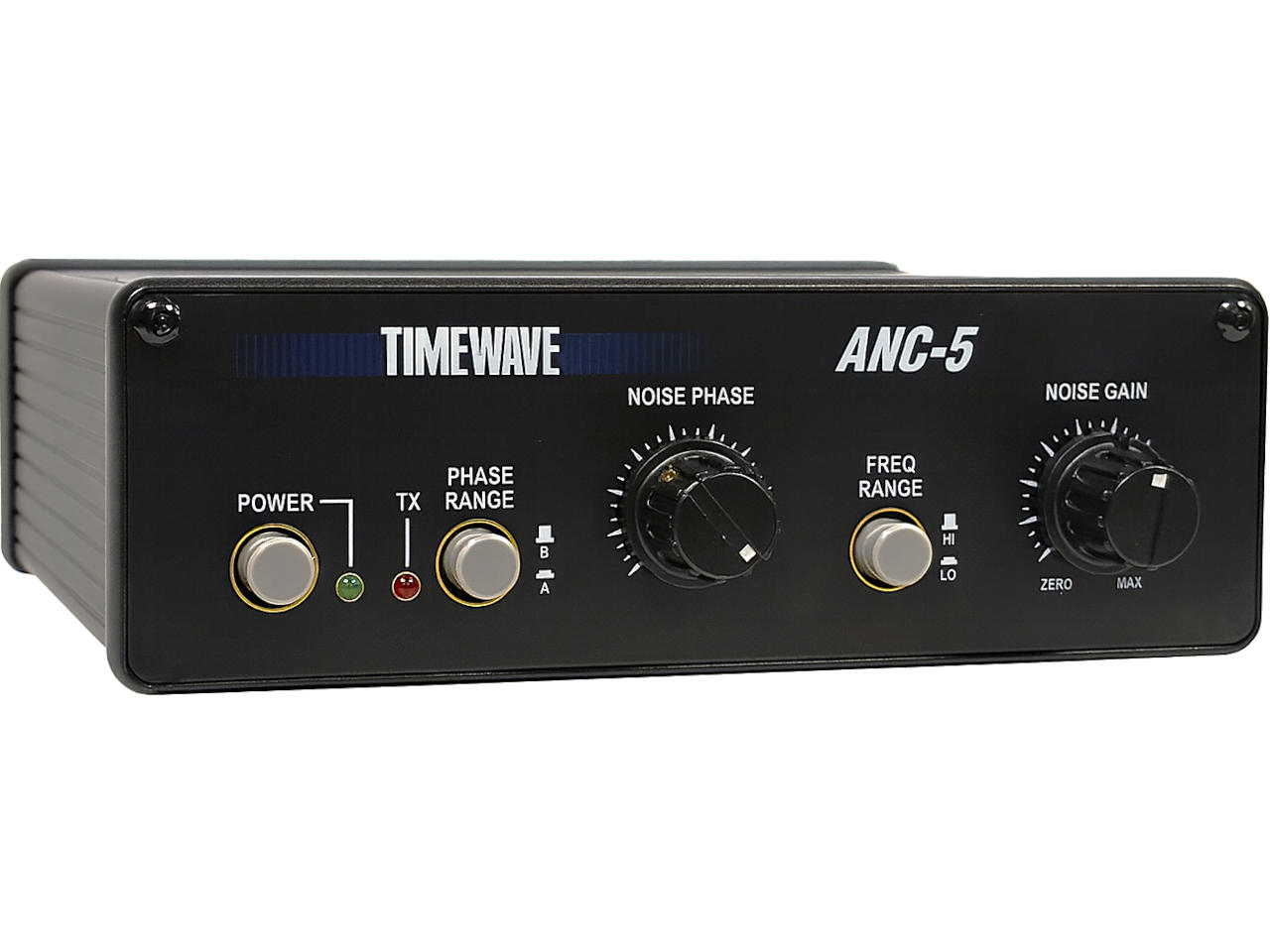

Front panel controls allow adjustment of both the phase and magnitude of the local interference, providing extremely deep cancellation of the offending interference.
The Timewave ANC-5 connects between the main station antenna and the receiver antenna connector. A second antenna connects to the ANC-5 to act as a noise pickup antenna. A short wire antenna or a short collapsible whip is generally satisfactory for eliminating noises generated around the operating position or in the house, but an external antenna usually works better to eliminate noises generated outside the home. Any noise antenna that works, including combinations of horizontal and vertically polarized antennas, is satisfactory.
The Timewave ANC-5 operates as an active antenna by using the noise antenna and the NOISE GAIN control to amplify the antenna output. The unit can also be used as a diversity combiner to peak weak signals or null interfering signals.
FEATURES:
- Cancels S-9 line noise
- Nulls strong interfering signals
- Works with any transceiver/receiver
- Makes 2 antennas into phased array
- Wipes out noise before it hits your receiver
- Reduces interference generated by power lines, electric motors, TVs & home electronics up to 40 dB
- Works for voice, data & CW
- 250 Watt rating
ANC-5 Specifications:
- Operating Frequency Range: 500 kHz to 80 MHz (usable down to 100 kHz)
- Input Level, Main Antenna: 3Vrms maximum
- Maximum Transmit RF Power: 250 W PEP or Average Through Unit
- Time to Switch to Bypass: When 7 msec, typical Transmit RF is Detected
- Time to Return to Receive Mode: Adj. from 7msec to 1.5 sec. , typical when RF is Not Present
- Typical Local Noise Types: Power Line Noise, Computer Noise, TV Noise, etc.
- Noise Cancellation: Typically 40 dB or greater
- Front Panel: POWER switch, POWER LED, TX LED, PHASE RANGE switch, NOISE PHASE control, FREQ RANGE switch, NOISE GAIN Control.
- Rear Panel: Power Input, Noise Antenna Input, Main Antenna Input, Radio Output, PTT Input, Hang Time Adjust
- Input Power: +11 VDC to +16 VDC @ 110 mA, reverse polarity protected
- Size: 2.25"H x 6.6"W x 6.2"D (5.72cm x 16.76cm x 15.75cm)
- Weight: 1.35 pounds (.61 kG)
- Temperature Ranges: Operating: -20°C to +55°C / Storage: -40°C to +85°C
- Humidity: Up to 95% @ +55°C
- Signal Loss, Main Ant. to Radio: 6dBRF
