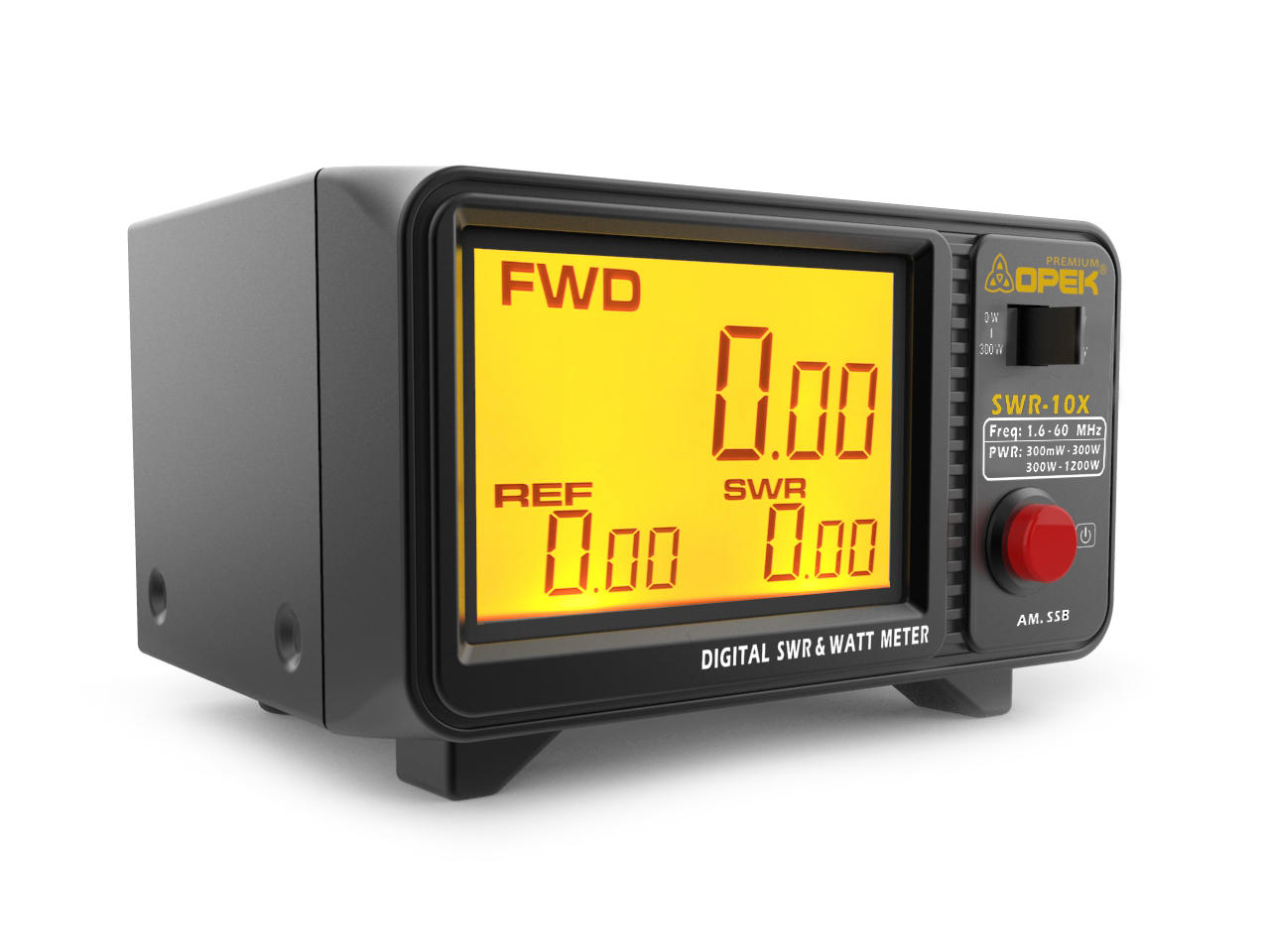

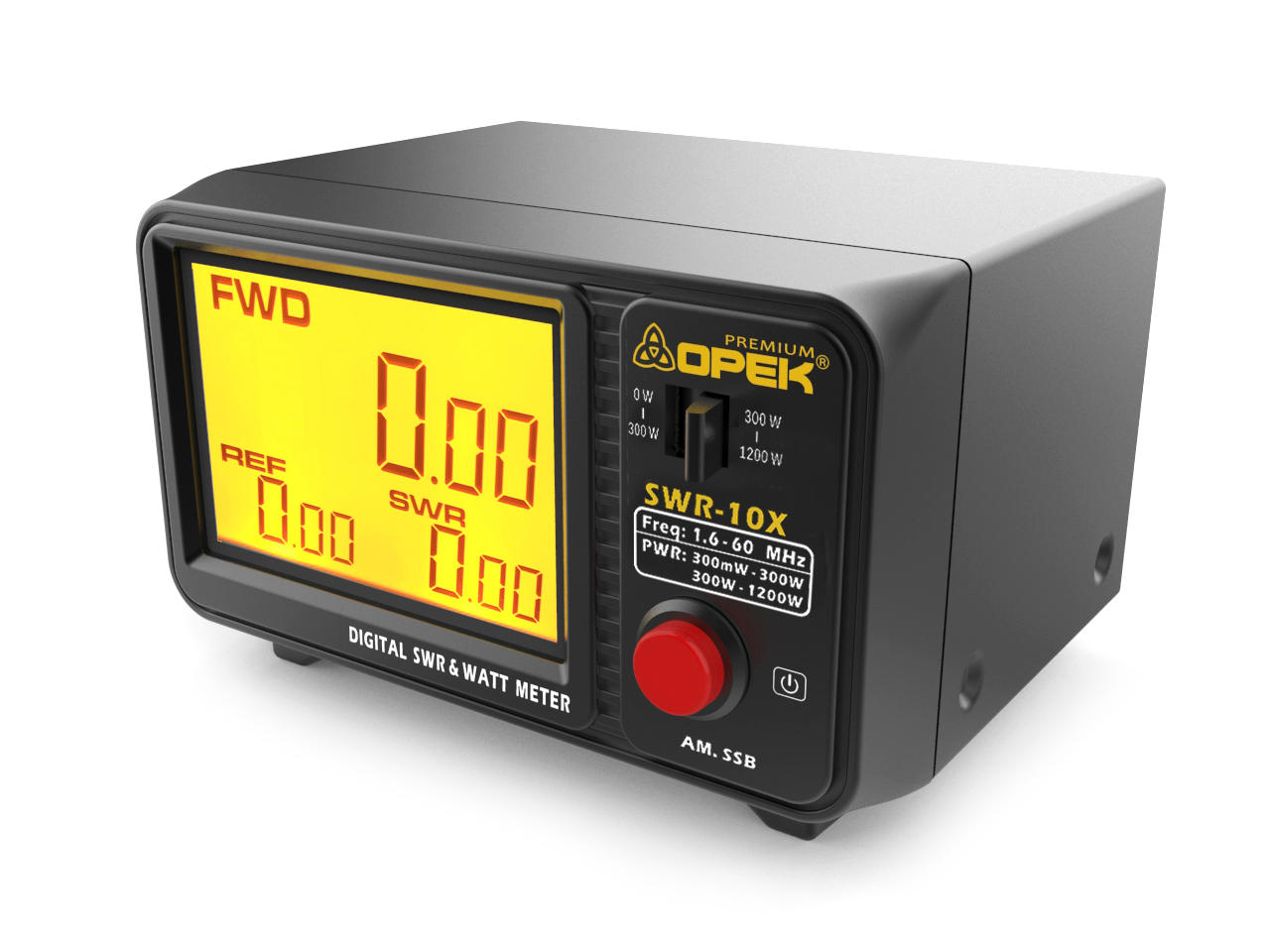

Digital SWR & Watt Meter is highly accurate for measuring Forward Power,
Reflected Power, & VSWR, operating between 1.6 to 60 MHz with a maximum power handling of 1200 Watts.
FEATURES:
- Frequency Range: 1.6 - 60 MHz
- Analog Mode: CW, FM, FDMA
- MAX Mode: SSB, AM
- Calibration Point: 14 / 50 MHz
- Impedance: 50 ohm
- Max. Power Range: 1st : 300mW - 300W ; 2nd : 300W - 1200W
- Minimum Power for SWR: 300mW
- Insertion Loss: Less than 0.1 dB
- DC Power Source: 12V DC Wire
- Insertion Loss: Less than 0.1 dB
- Accuracy: (AVG) + / - 5% (1.6-30MHz )
- Testing Functions: Fwd / Ref Power, SWR ratio
- Large LCD: (3.5″) backlit display
- MAX Switch: on Rear side

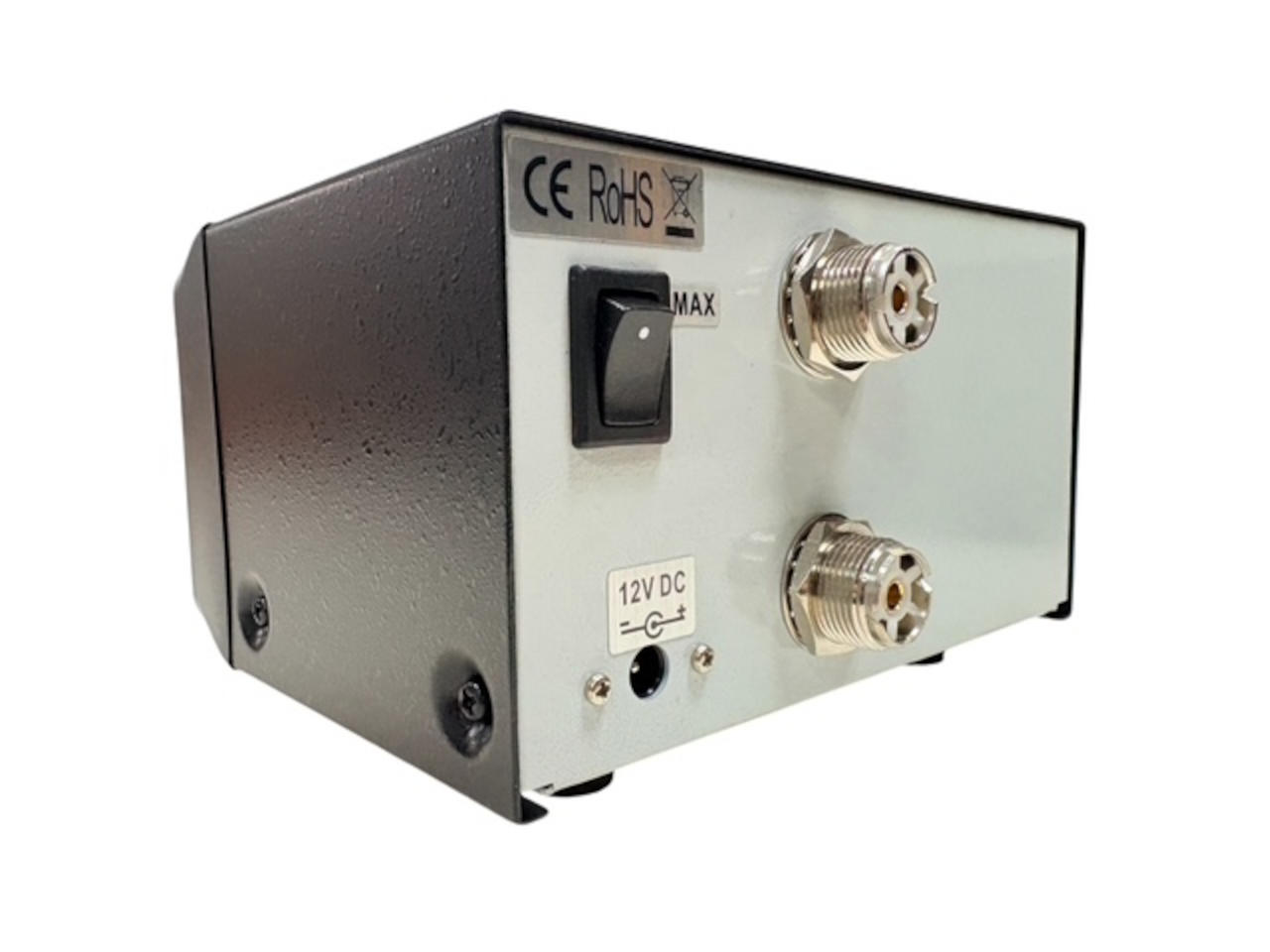

- Connection: UHF Female (SO-239) * 2
- Dimensions: 5.51 in.(W) x 3.30 in. (H) x 4.80 in. (D) / 140 x 84 x 122 mm
- Net Weight: 1.65 lbs. / 750g
- Accurately measure for measuring Forward Power, Reflected Power, and the VSWR for Analog and Digital transceivers
