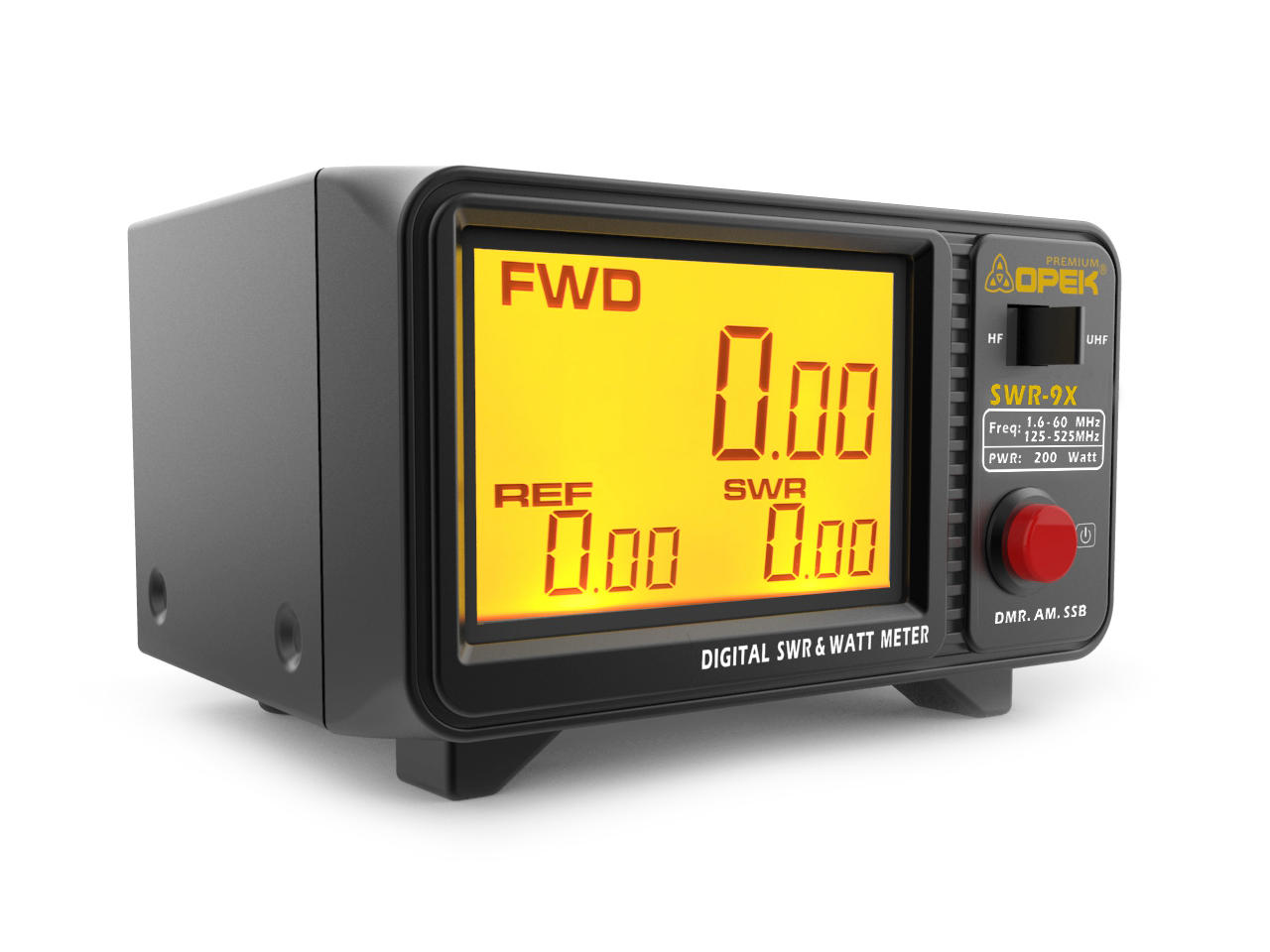

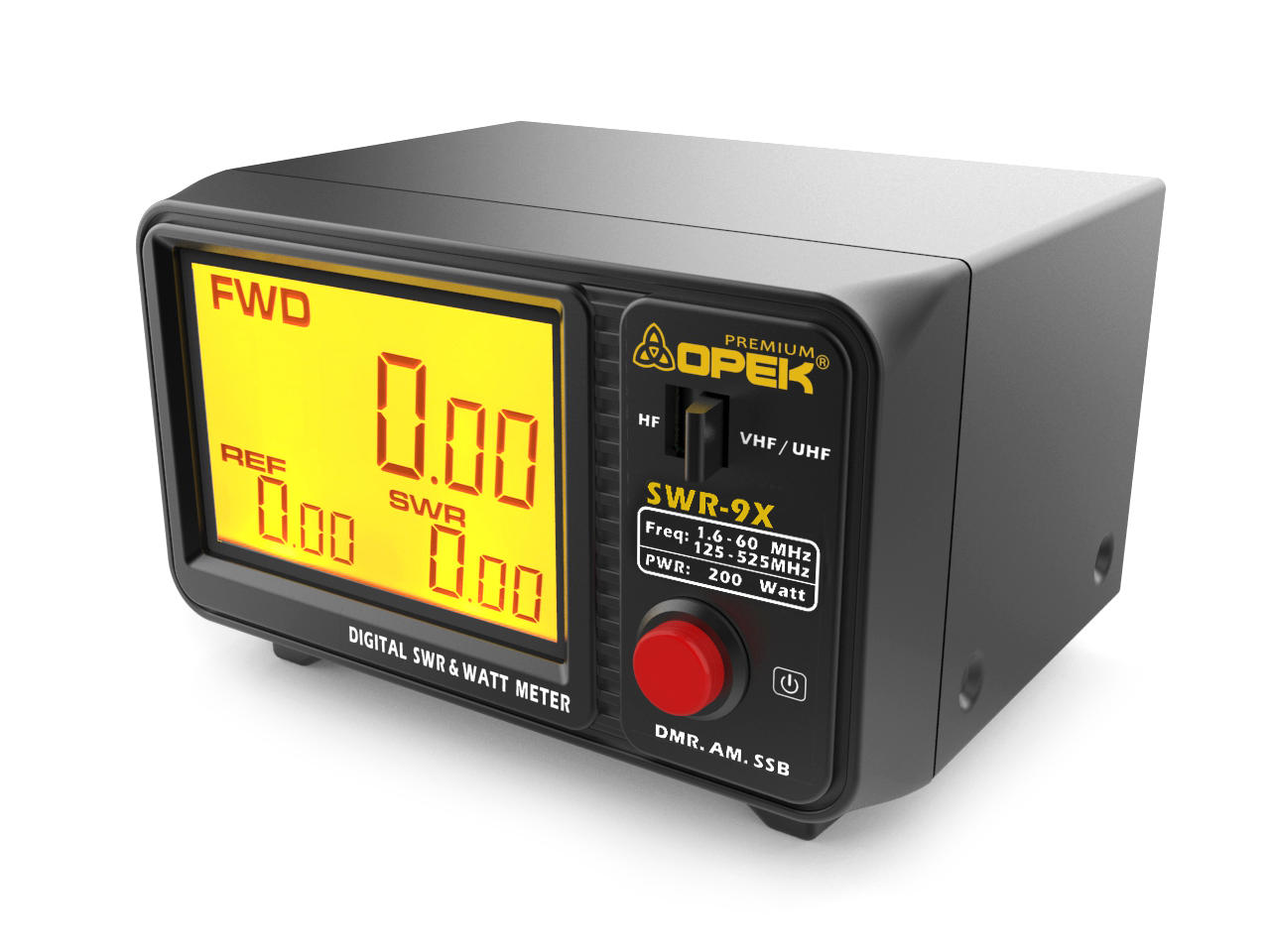

OPEK SWR-9X

Name: OPEK SWR-9X
Brand: OPEK
SKU: H0-019443
Price: 179.95 USD
Availability: InStock

1.6-60 / 125-525 Mhz Digital SWR Power Meter 200 Watt UHF SO239 CONN X 4

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $179.95^*

*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

Anaheim, CA

Atlanta, GA

Denver, CO

Milwaukee, WI

New Castle, DE

Phoenix, AZ

Plano, TX

Portland, OR

Sacramento, CA

Salem, NH

Winter Springs, FL

Woodbridge, VA

SWR-9X Description Hide

Digital SWR & Watt Meter for Analog and Digital Two Way Radios with a Maximum Power Range of up to 200 Watts

Frequency Range: 1.6 - 60 MHz / 125 - 525 MHz
Analog mode: CW, FM, FDMA
MAX Mode: DMR, SSB, AM
Calibration Point: 28 / 145 / 435 MHz
Impedance: 50 ohm
Max. Power Range: Up to 200 Watts
Minimum Power for SWR: 1W
Insertion Loss: Less than 0.1 dB
DC Power Source: 12V DC Wire
Insertion Loss: Less than 0.1 dB
Accuracy: (AVG) + / - 5%
Testing Functions: Fwd / Ref Power, SWR ratio
Large LCD (3.5″) Backlit Display

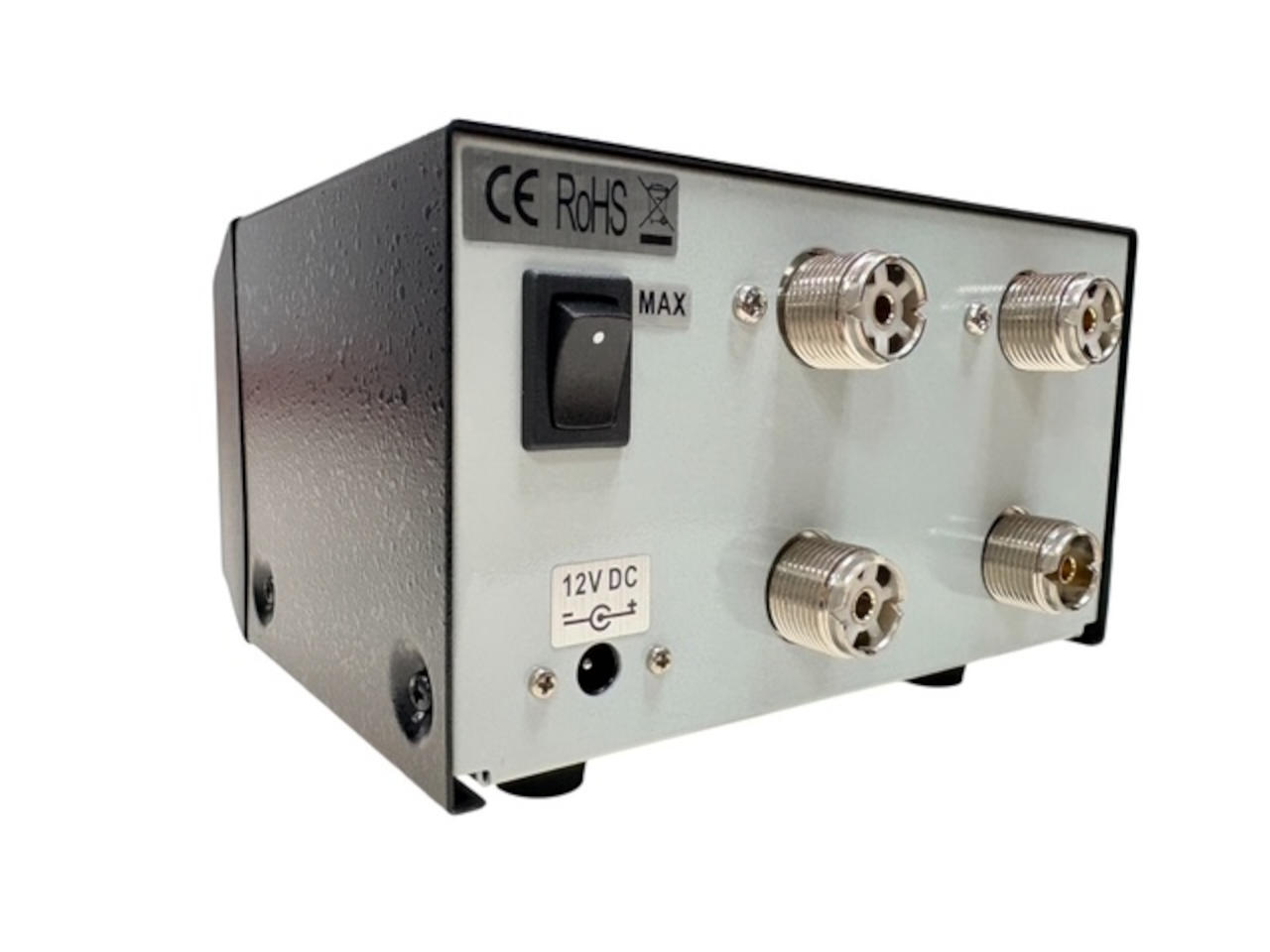

MAX Switch on Rear Side
Connection: UHF Female (SO-239) * 4
Dimensions: 5.51 in.(W) x 3.30 in. (H) x 4.80 in. (D) / 140 x 84 x 122 mm
Net Weight: 1.65 lbs. / 750g
Accurately measure for measuring Forward Power, Reflected Power, and the VSWR for Analog and Digital transceivers

Manufacturer's Website
