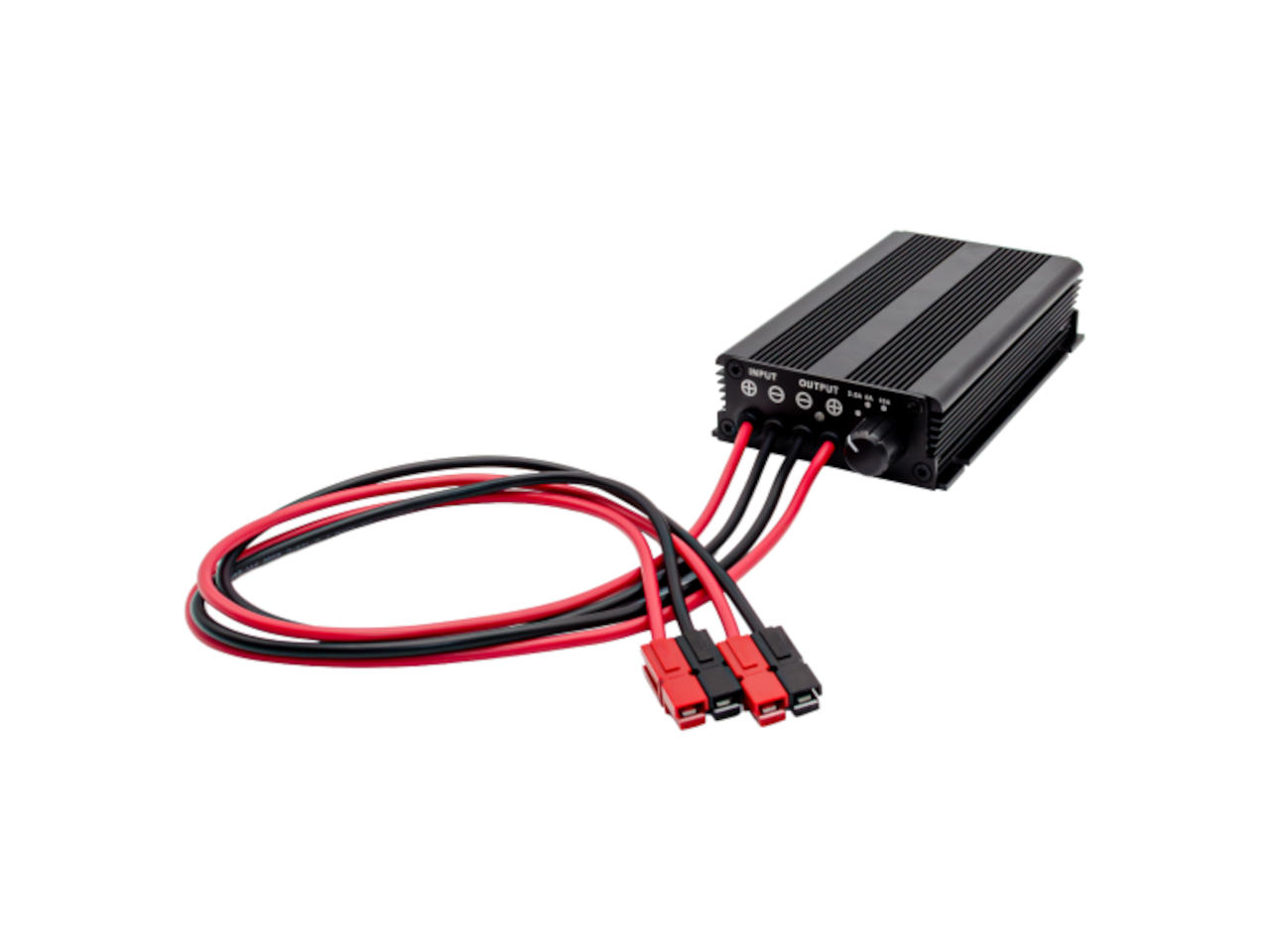

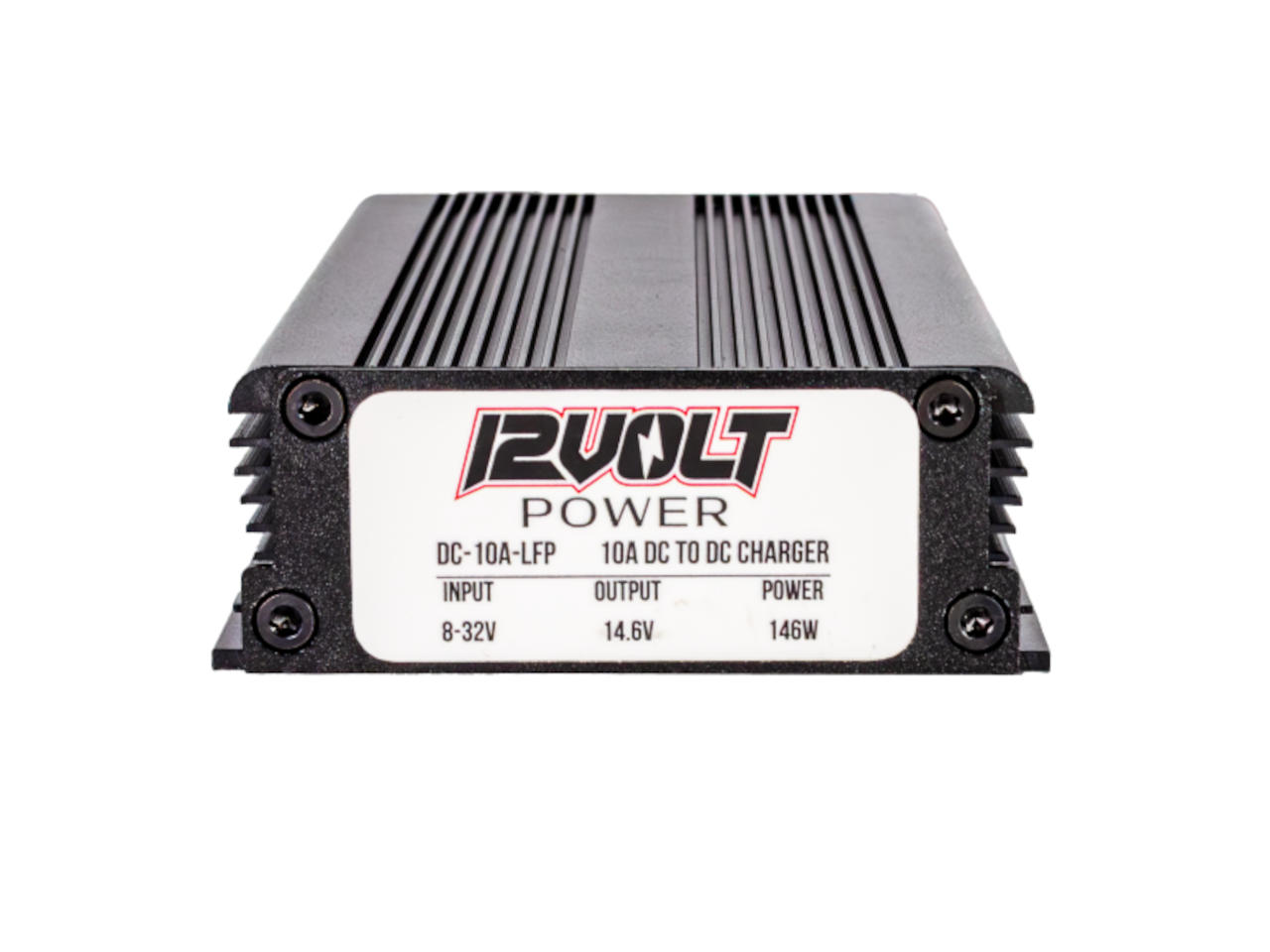

Keep your 12V Bioenno Power LiFePO4 batteries fully charged with your vehicles 12V charging system. User selectable 2.5/5.0/10A charging current accommodates batteries ranging from 5Ah up to 70Ah+. Wide input range accepts 8-32V DC. Preprogrammed for 14.6V DC output.
Wide Input Range: The DC-10A-LFP’s wide input voltage range from 8-32V DC allows for multiple power sources. Easily power this device from a 12 or 24V system including vehicle alternators, batteries, and power supplies.
User Selectable Output: Choose from 2.5/5.0/10A charging current to accommodate multiple battery capacities.
- 2.5A – For 5Ah or larger
- 5.0A – For 10Ah or larger
- 10A – For 30Ah or larger
2-Stage Charging Profile: 2-Stage CC/CV charging profile is designed specifically for 12V LiFePO4 batteries. Ideal for use with 12V Bioenno Power batteries.
- Constant Current – LED color is RED while the charger is in the constant current (CC) mode.
- Constant Voltage – LED will change to GREEN when changing to constant voltage (CV) mode.
