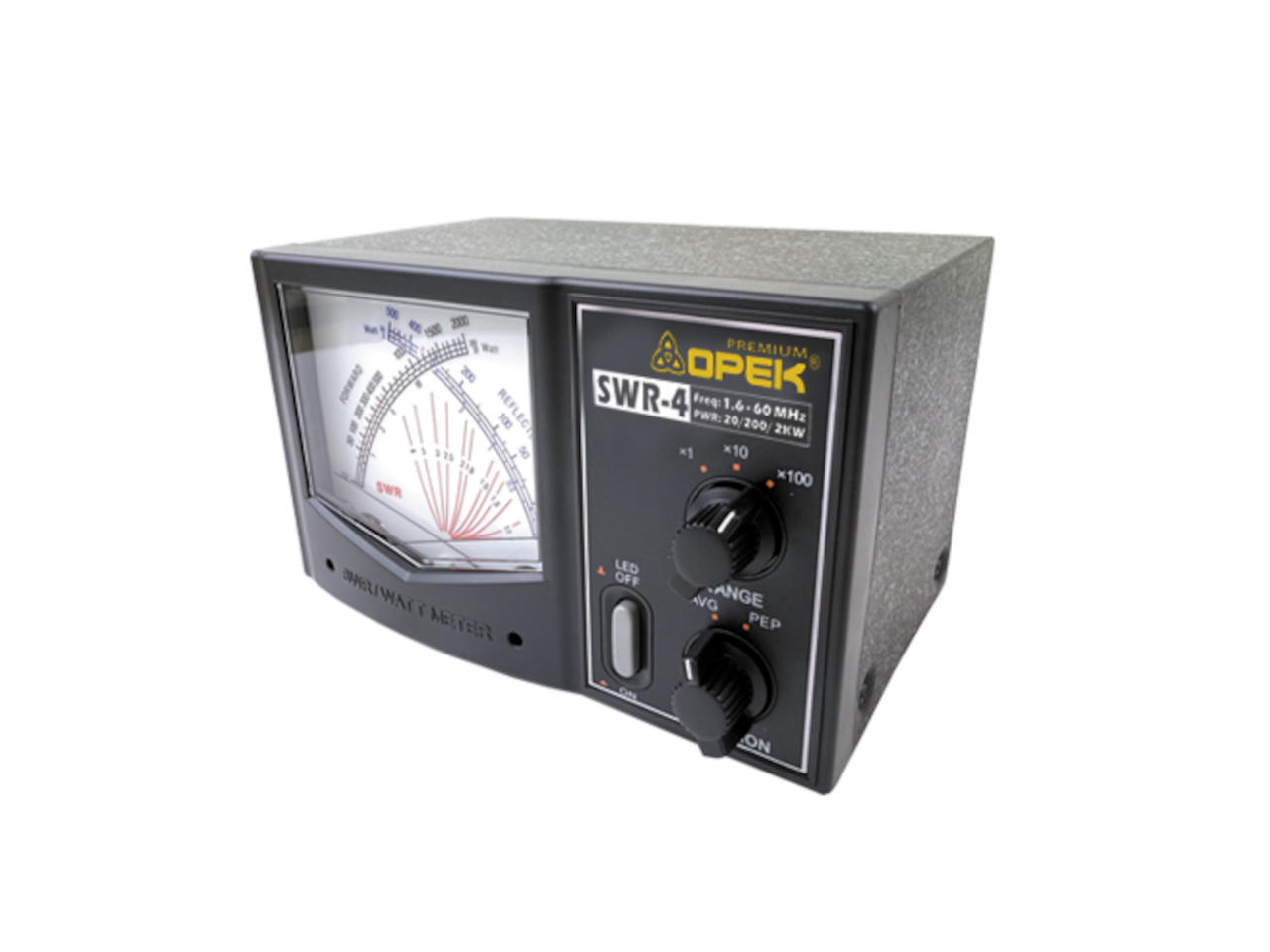

The Opek SWR-4 is a 2,000 Watt SWR & Watt Meter designed for Highly Accurate Measurement of Forward Power, Reflected Power, and VSWR. It features a Large Precision Cross Needle Meter that simultaneously displays FWD, REF, and SWR readings, along with a True Active PEP Circuit found only on this model in the SWR series.
Features:
- Precision, Large (104mm) Cross 'X' Meter Simultaneously Displays FWD/REF/SWR
- DC Grounded Antenna Connector Prevents Electrostatic Puildup
- True Directional Coupler Increases Accuracy
- Low Bias Schottky Diode Detector Increases Linearity
- Individual Meter Scale for each Power Range Increases Reading Accuracy
- LED Backlighting
- DC Power Cable Included
- Precision True Active PEP Circuit (SWR-4 only)
Specifications:
- Frequency Range: 1.6-60 MHz (6m/HF)
- Power Range: 0 - 2000W
- Power Scale: 20/200/2KW
- Maximum Power: 2KW
- Accuracy: ±10% of Full Scale or better
- Minimum Power for SWR: 1W
- Testing Function: Forward, Reflected Power, SWR, Active PEP

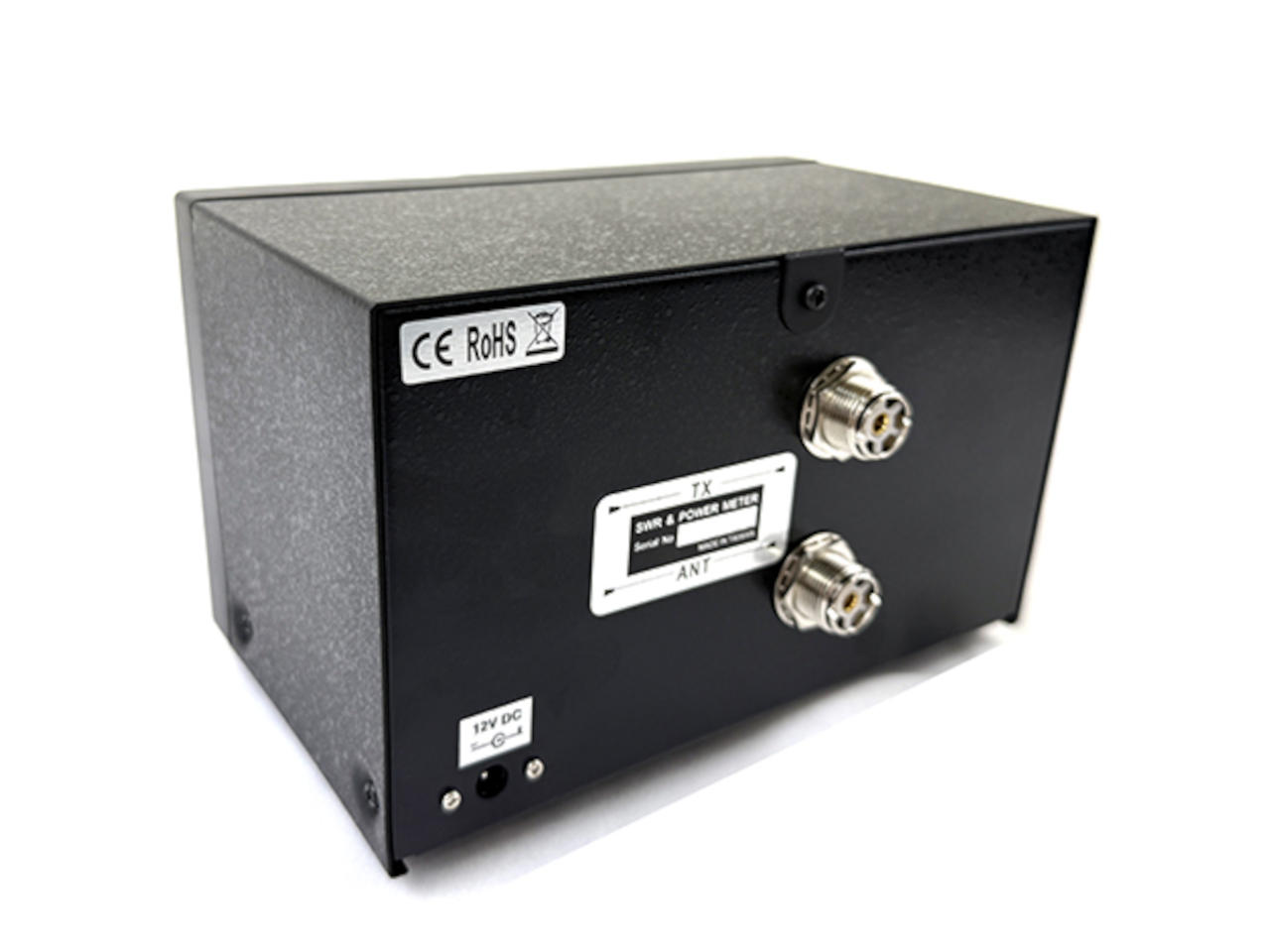

- Input/Output Connector: SO-239
- Input/Output Impedance: 50 Ohm
- Dimensions (W/H/D): 184mm x 118mm x 131mm
- Weight (Net): 900g
- Input Power: 9-14 VDC, 200 mA Maximum
