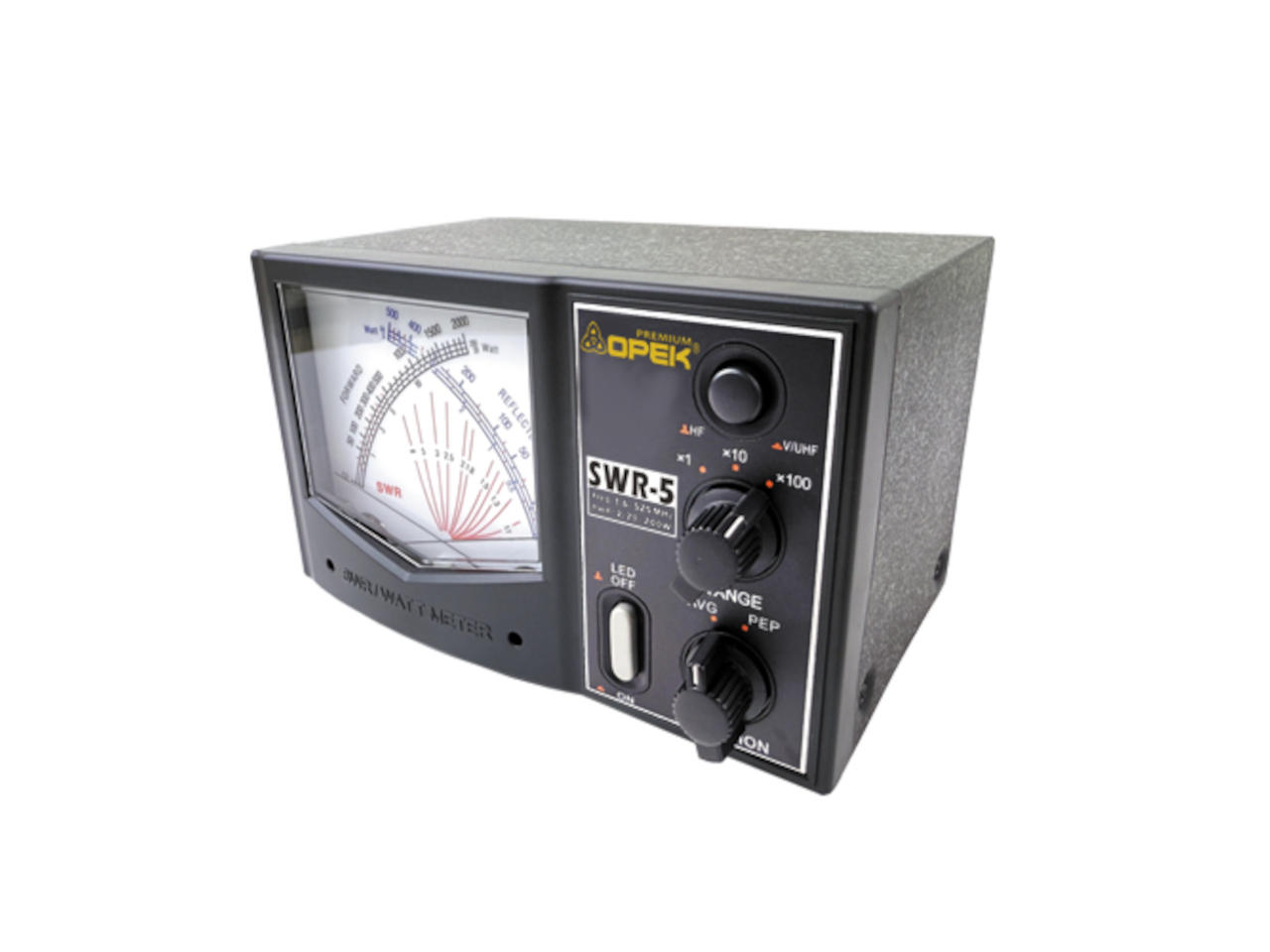

The Opek SWR-5 is a 200 Watt SWR & Watt Meter designed for Highly Accurate Measurement of Forward Power, Reflected Power, and VSWR. It features Dual Sensors covering a Wide Frequency Range, paired with a Large Precision Cross Needle Meter that simultaneously displays FWD, REF, and SWR readings.
Features:
- Precision, Large (104mm) Cross 'X' Neddle Meter Simultaneously Displays FWD/REF/SWR
- DC Grounded Antenna Connector Prevents Electrostatic Buildup
- True Directional Coupler Increases Accuracy
- Low Bias Schottky Diode Detector Increases Linearity
- Individual Meter Scale for Each Power Range Increases Reading Accuracy
- LED Backlighting
- DC Power Cable Included
Specifications:
- Frequency Range: 1.6-525 MHz (Dual sensors)
- Power Range: 0 - 200W
- Power Scale: 2/20/200W
- Maximum Power: 200W
- Accuracy: ±10% of Full Scale or Better
- Minimum Power for SWR: 1W
- Testing Function: Forward, Reflected Power, SWR

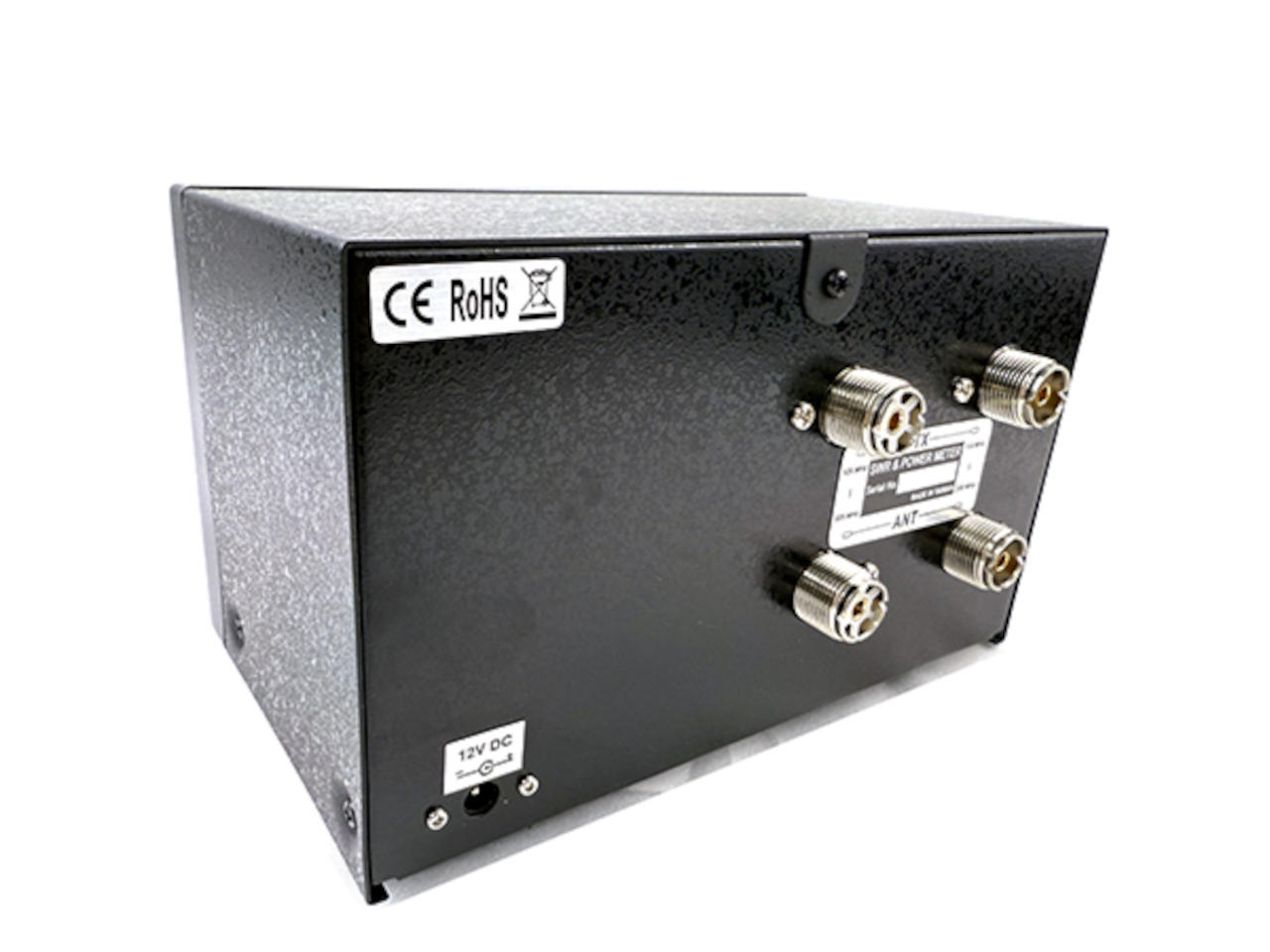

- Input/Output Connector: SO-239
- Input/Output Impedance: 50 Ohm
- Dimensions (W/H/D): 184mm x 118mm x 131mm
- Weight (Net): 1070g
- Input Power: 9-14 VDC, 200 mA mMaximum
